Ultra 5 Bolt 6 RX 750 Kit
16-0528-GM
Ultra 5 Bolt 6 RX 750 Kit
16-0528-GM
Model: 16-0528
Display: 5-inch Touchscreen, 1920x1080, 440 PPI
Input: 1x 3G-SDI [IN], 1x HDMI 2.0 (4Kp30) [IN]
Output: 1x 3G-SDI [IN/OUT], 1x HDMI 2.0 (4Kp30) [OUT], 1x 3.5mm Stereo Headphone Jack
Power Input: 2-pin Locking Power Input (10-34V DC, 2.4A)
Data I/O: 1x SD Card Slot, 1x RJ45 Ethernet, 1x Micro USB, 1x Locking USB
DESCRIPTION
SPECS
SHIPS WITH
COMPATIBLE WITH
DESCRIPTION

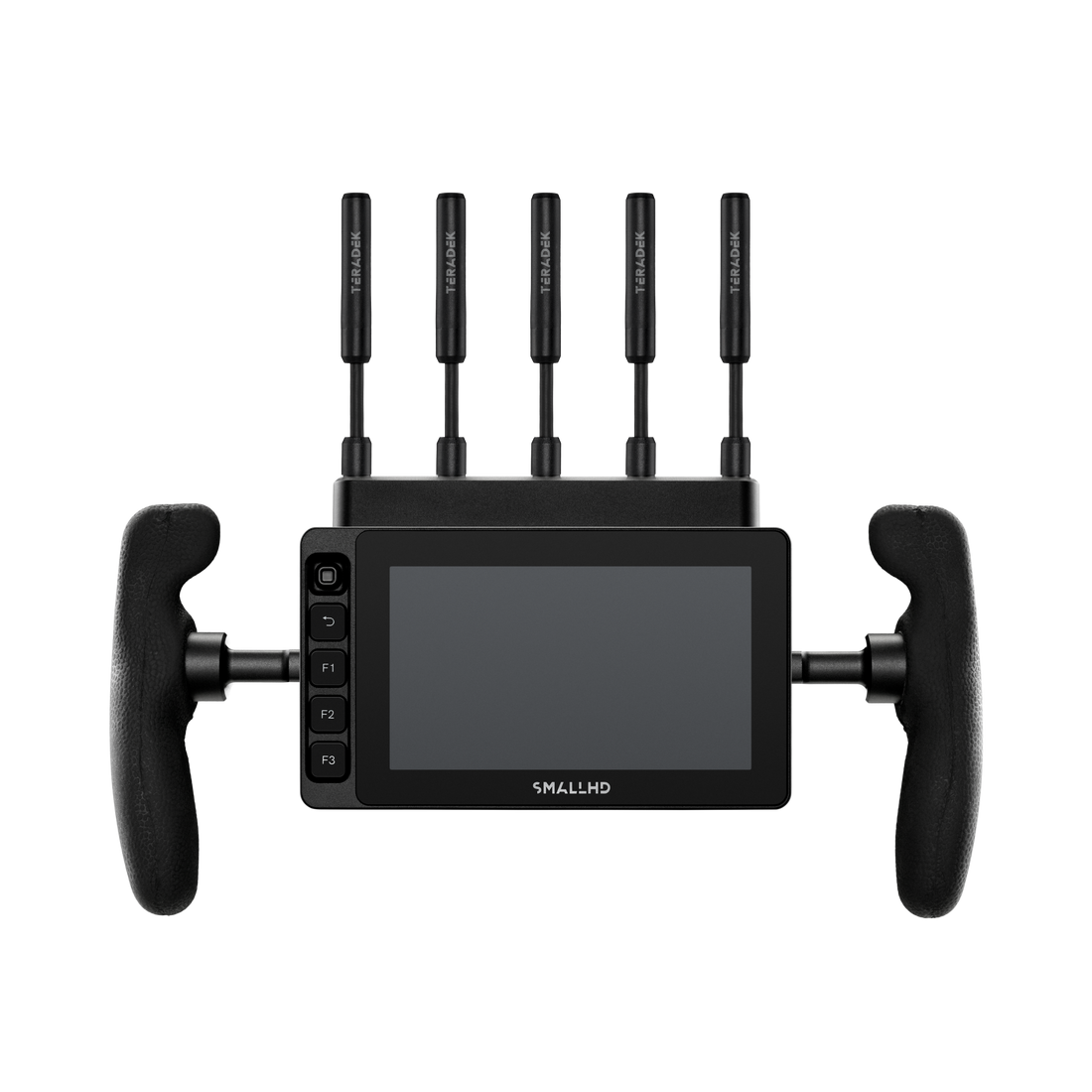

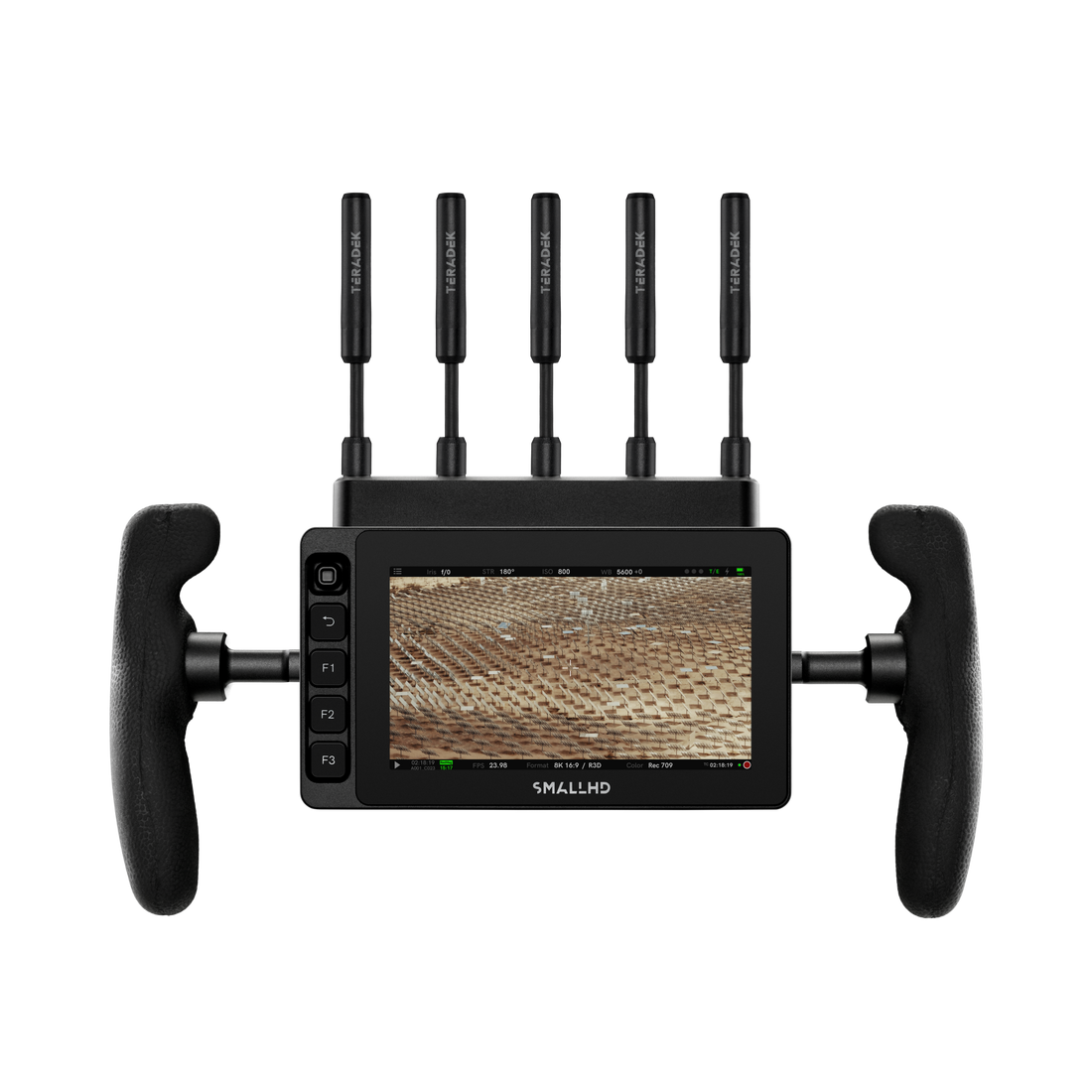

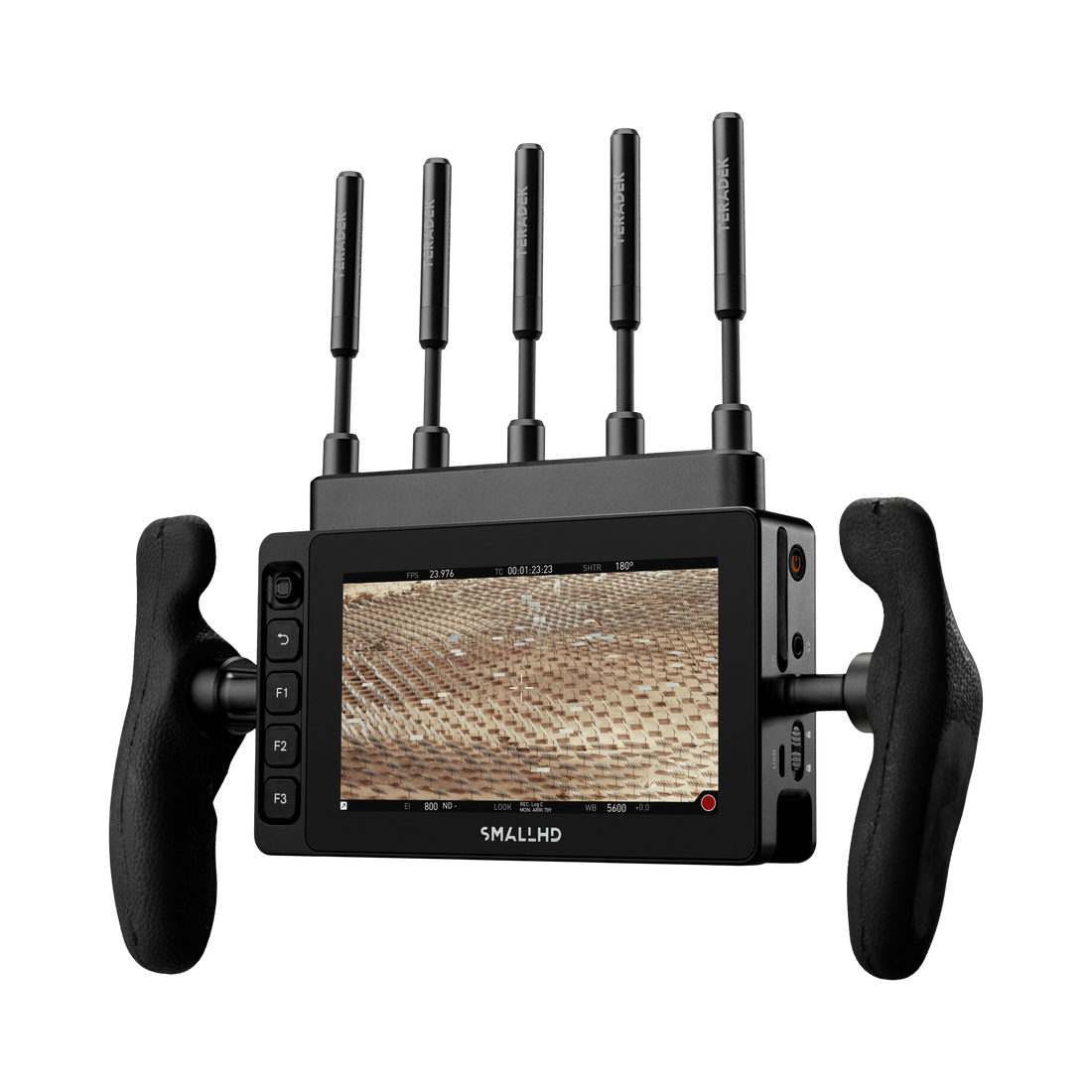

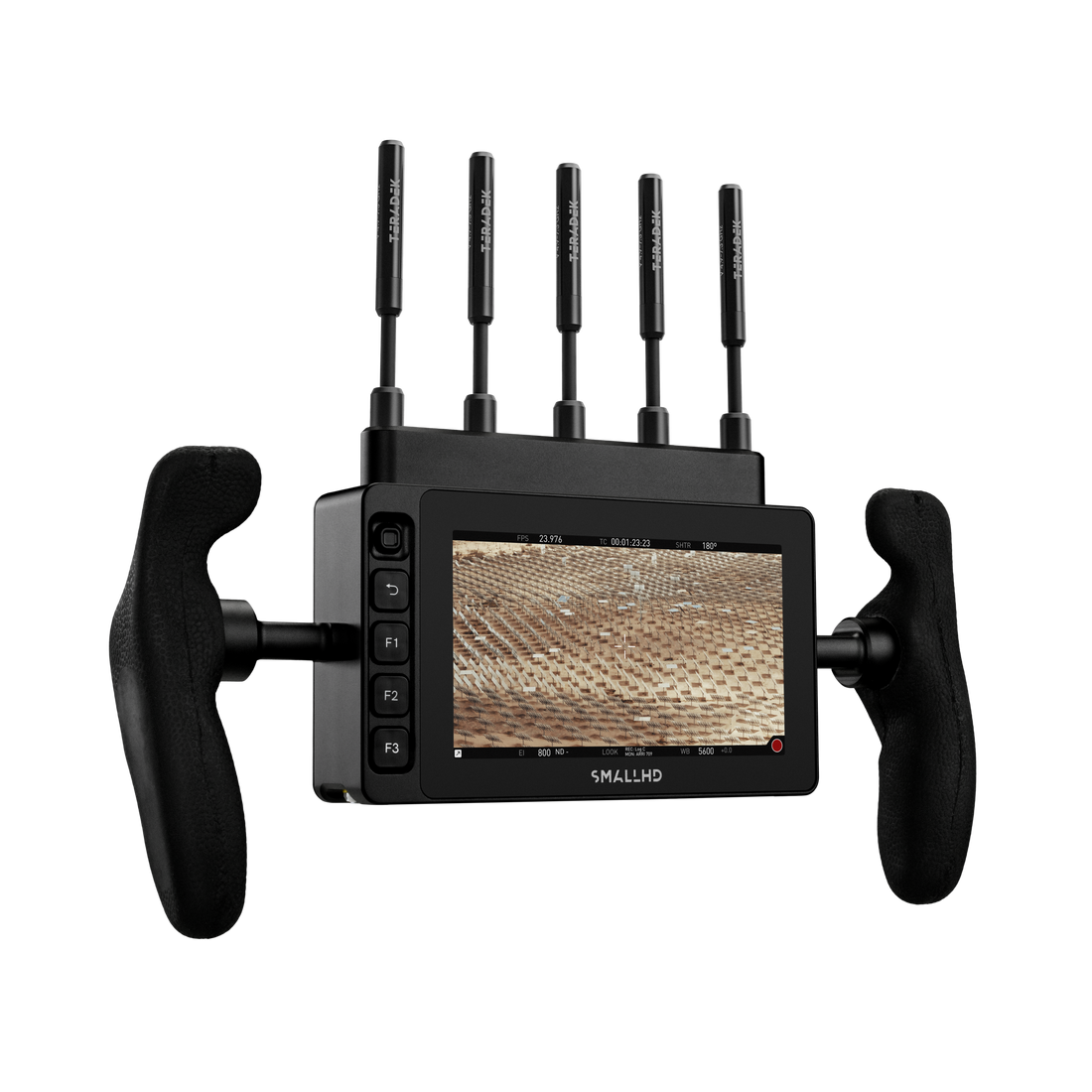

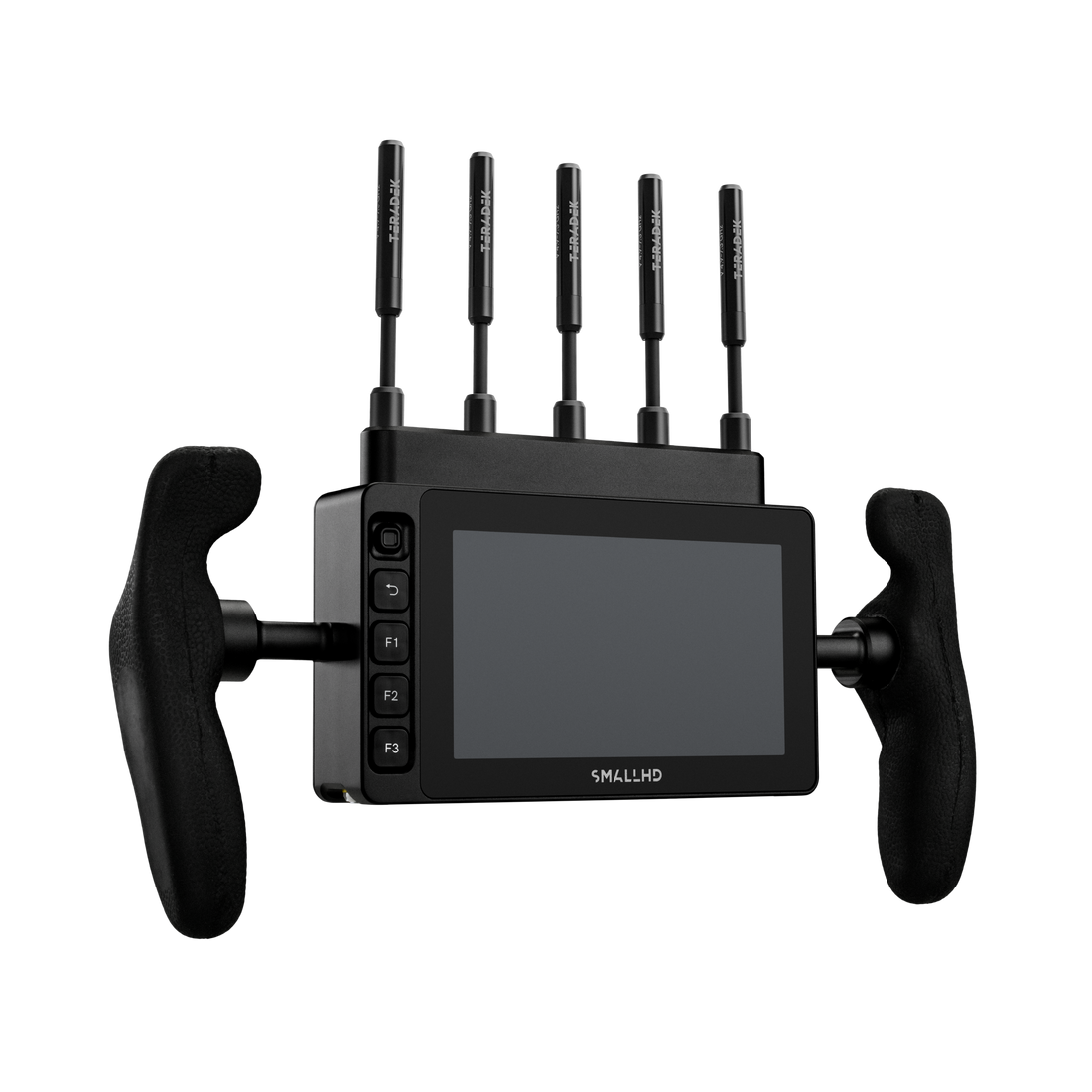

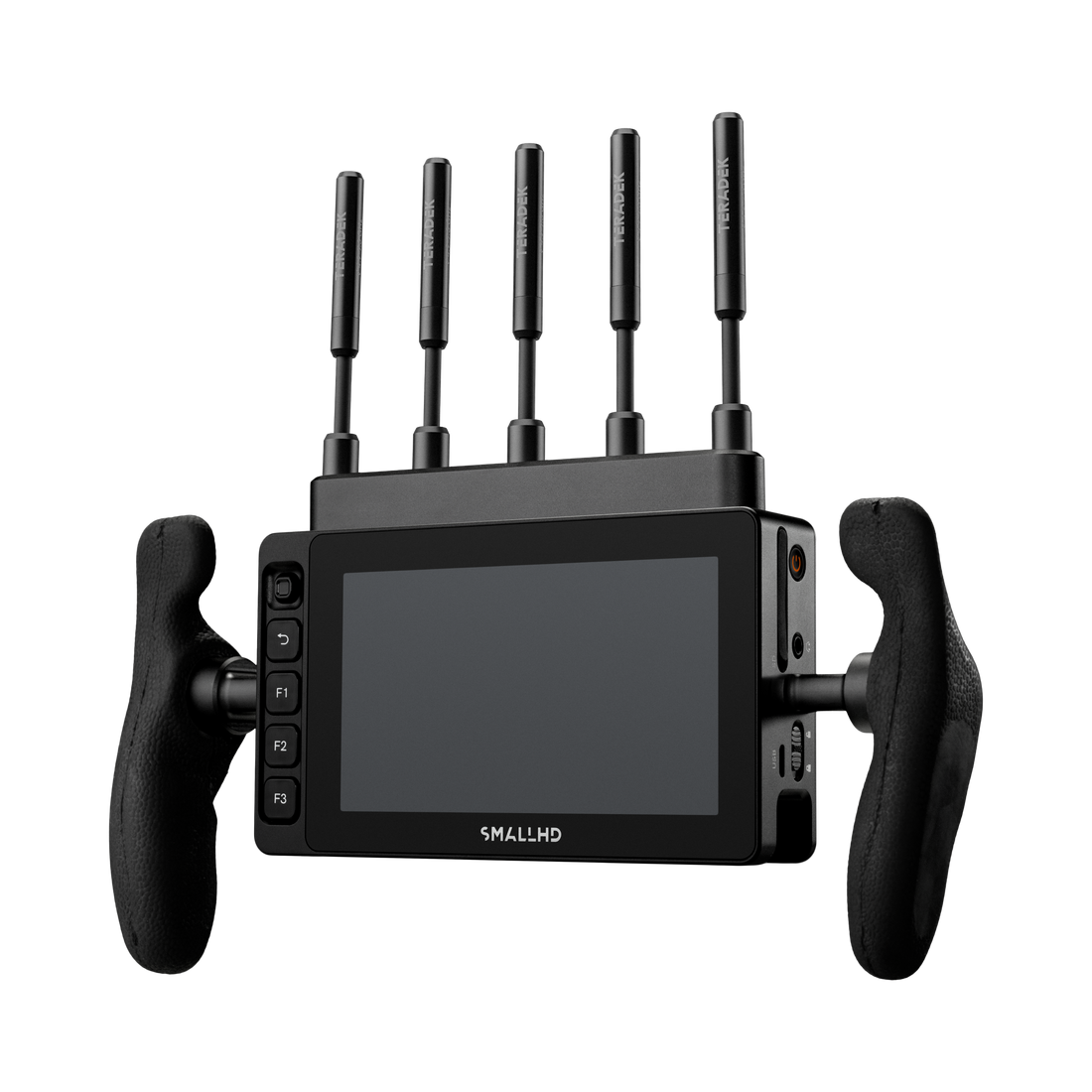

Bringing together SmallHD’s field-ready Ultra 5 monitor with Teradek’s wireless transmission technology, the Ultra 5 Bolt 6 RX 750 integrates a Bolt 6 750 Receiver directly inside, allowing you to view the image from your camera up to 750 feet away.
About Ultra 5
Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. along with P3 color-accuracy. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.

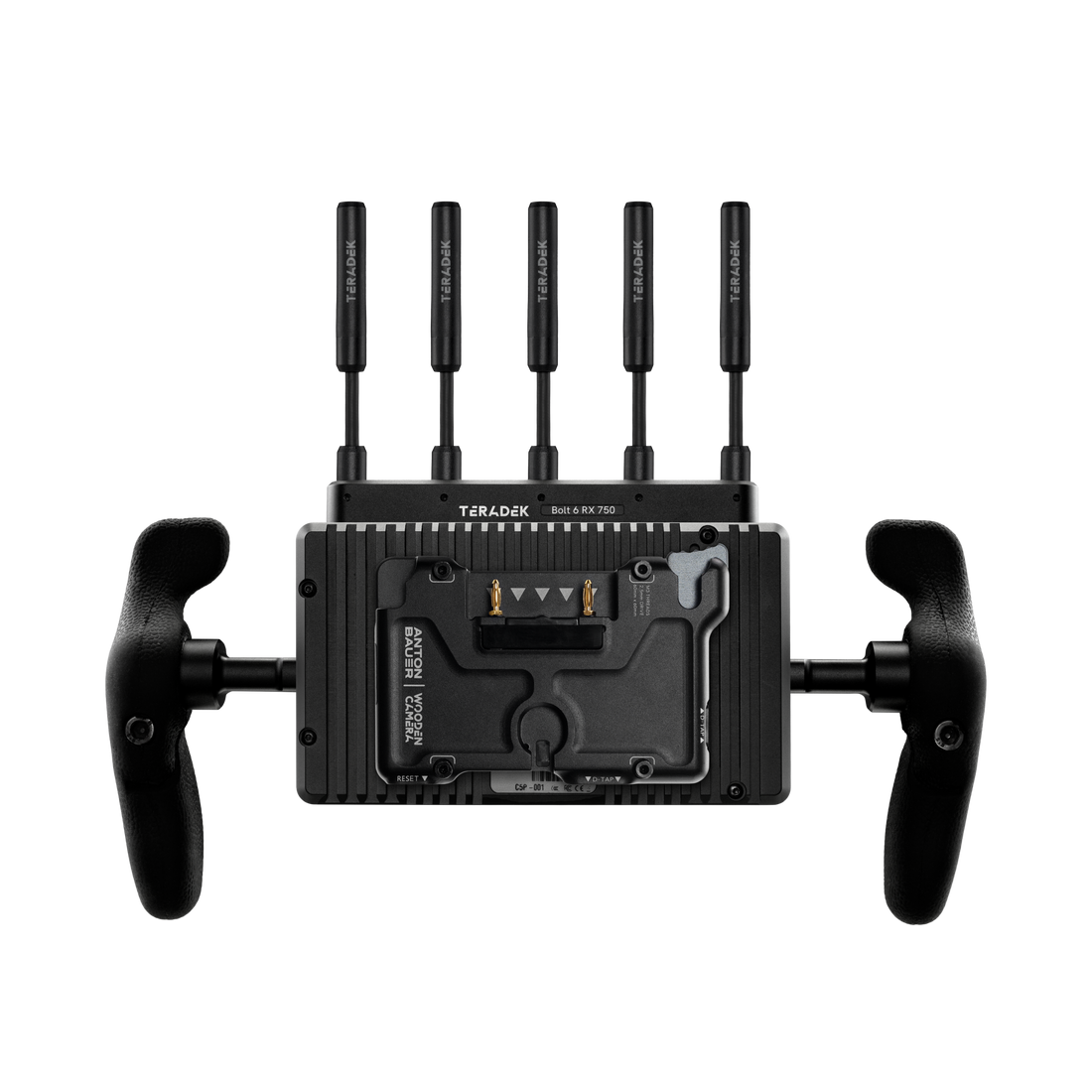

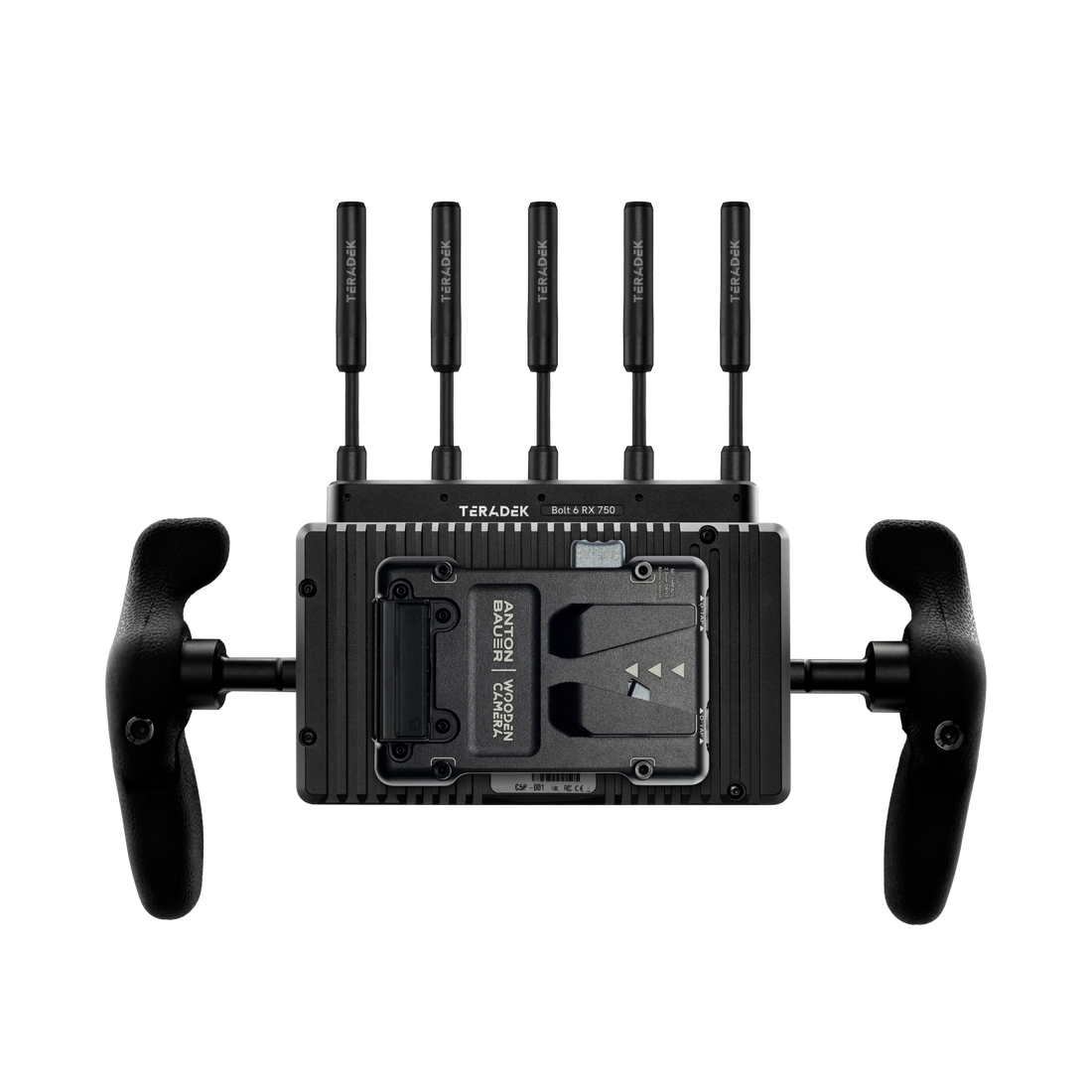

Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately).

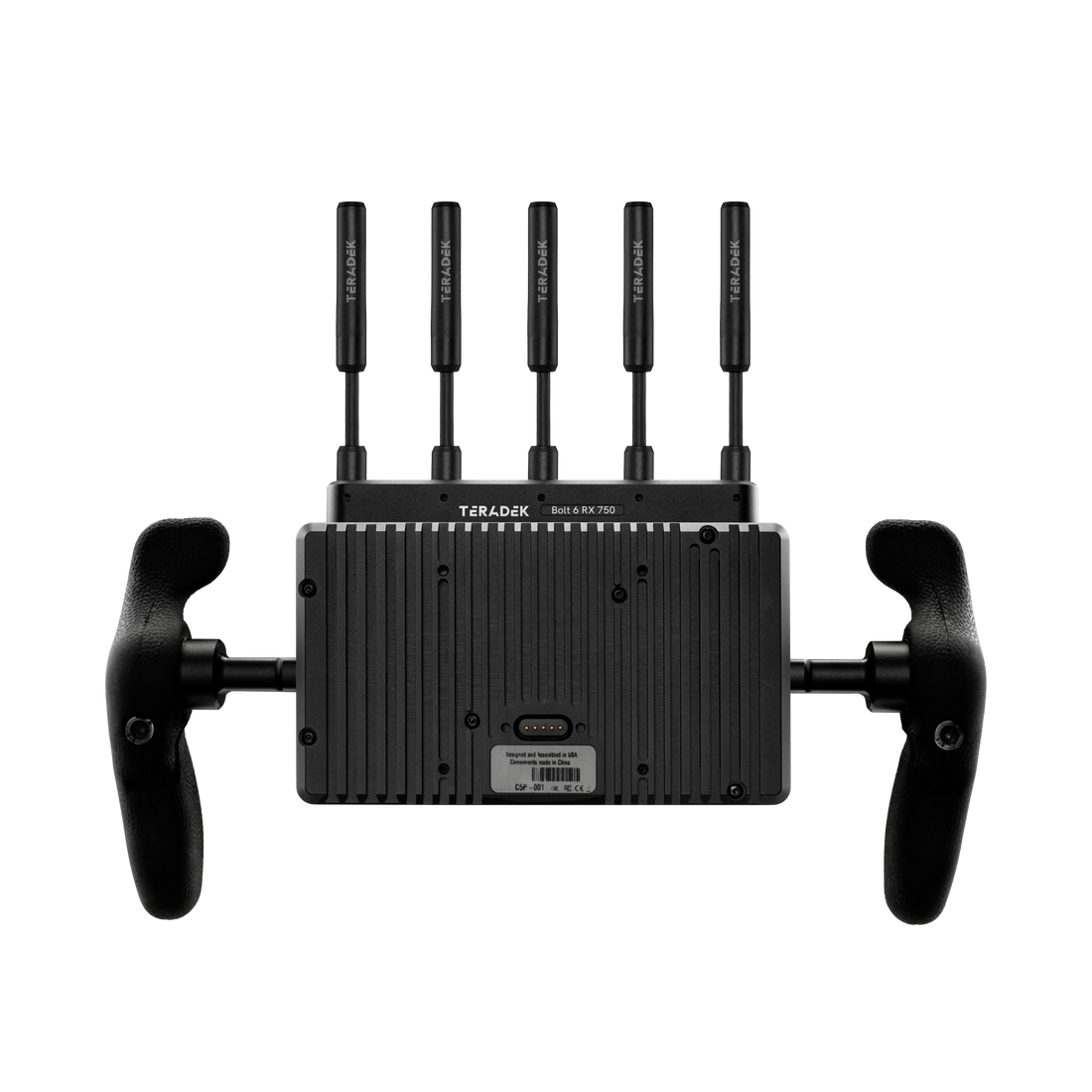

About the Teradek Bolt 6 750 RX
The Bolt 6 RX is a real time wireless video receiver that supports video signals up to 4Kp30 via HDMI with no image delay. This RX allows you to receive color accurate, True HDR images in less than 0.001 seconds. Reliably receive your videos with advanced hardware and minimal image break-up.
Camera Control for ARRI, RED®, and Sony VENICE
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO®, V-RAPTOR™, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.
SPECS
SKU
SKU
16-0528-GM
Product ID
Product ID
6708833910917
Environmental
Item Weight (oz)
22.8
Height (in)
4.08 (7.98 w/antennas)
Width (in)
5.91
Length/Depth (in)
1.36
Mount Points
6x 1/4-20 Mounting Points
Display
Panel Type
Touch-Screen
Resolution
1920 x 1080
Aspect Ratio
16:9
Max Brightness
3000nits
Backlight Type
Edgelit
Input Signal
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Output Types
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

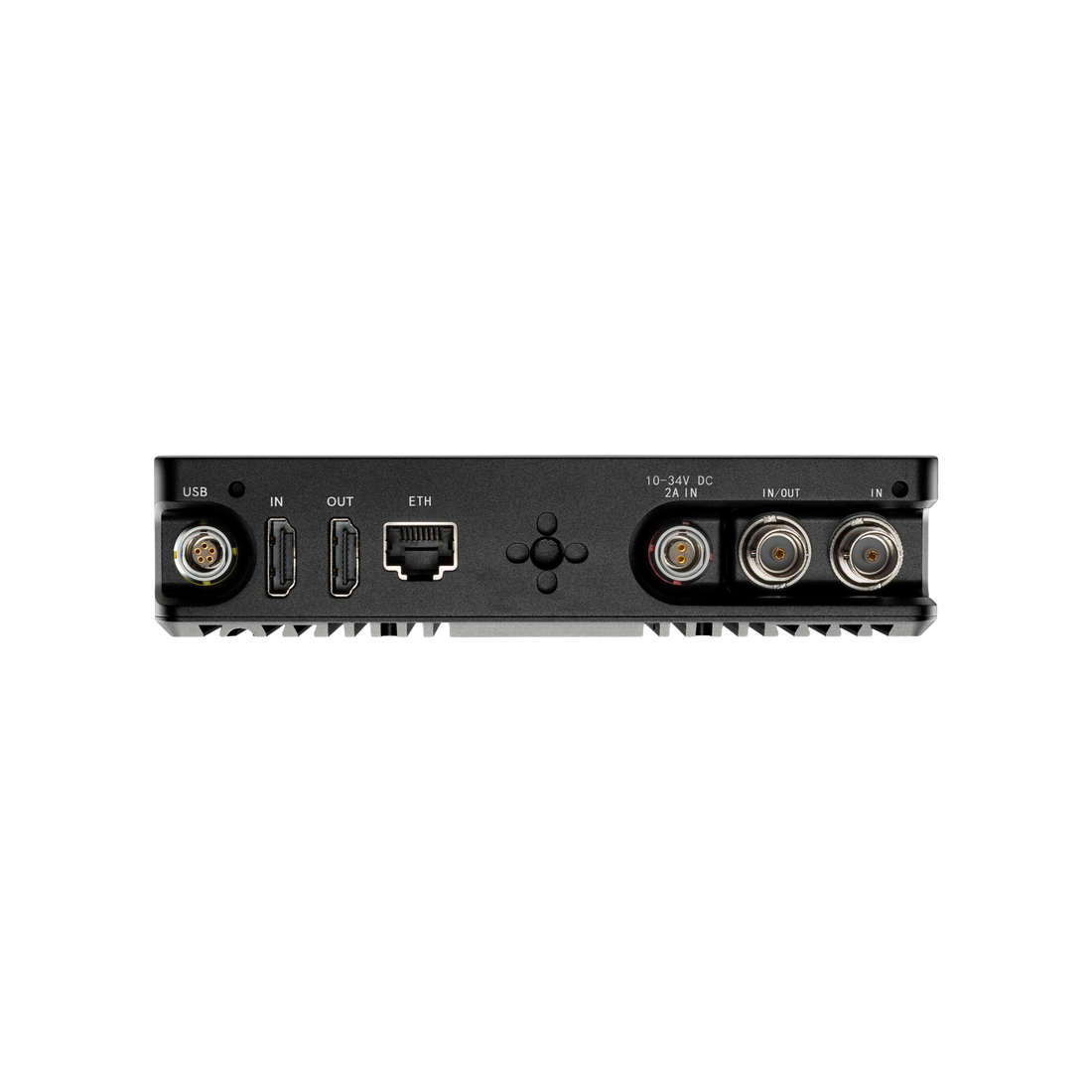

Connector Type
SDI
1x 3G-SDI (In), 1x 3G-SDI (In/Out)
HDMI
1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
Audio
1x 3.5mm Stereo Headphone Jack
Data I/O
Connector Type
1x RJ45 Ethernet
Storage Media
1x SD Card Slot
USB
1x Micro USB 1x Locking USB
Power
Input
2-pin Locking Power Input (10-34V DC, 2.4A)
Software
Pixel Zoom
Yes
Focus Assist
Yes
Peaking
Yes
False Color
Customizable False Color Overlays
Waveform
Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
Custom LUTS
17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
