Cine Series
Cine Series
Daylight-bright Cine 4K Monitors are color-
accurate,
lightweight, durable, and easily adapt to a
wide range of
production use cases: Video Village,
AC, DP, DIT, or as a
director’s monitor.
Daylight-bright Cine 4K Monitors are color-
accurate,
lightweight, durable, and easily adapt to a
wide range of
production use cases: Video Village,
AC, DP, DIT, or as a
director’s monitor.
13in, 18in, 24in
13in, 18in, 24in
Panel Size
Panel Size
1100–1500 nits
1100–1500 nits
Max Brightness
Max Brightness
100% Rec. 709
100% Rec. 709
Color Gamut
Color Gamut
3840 x 2160
3840 x 2160
Panel Resolution
Panel Resolution
10-bit
10-bit
Color Depth
Color Depth
100% Rec. 709
100% Rec. 709
Color Gamut
Color Gamut
Compare
Cine 4K Monitors
Display Size
Display Size

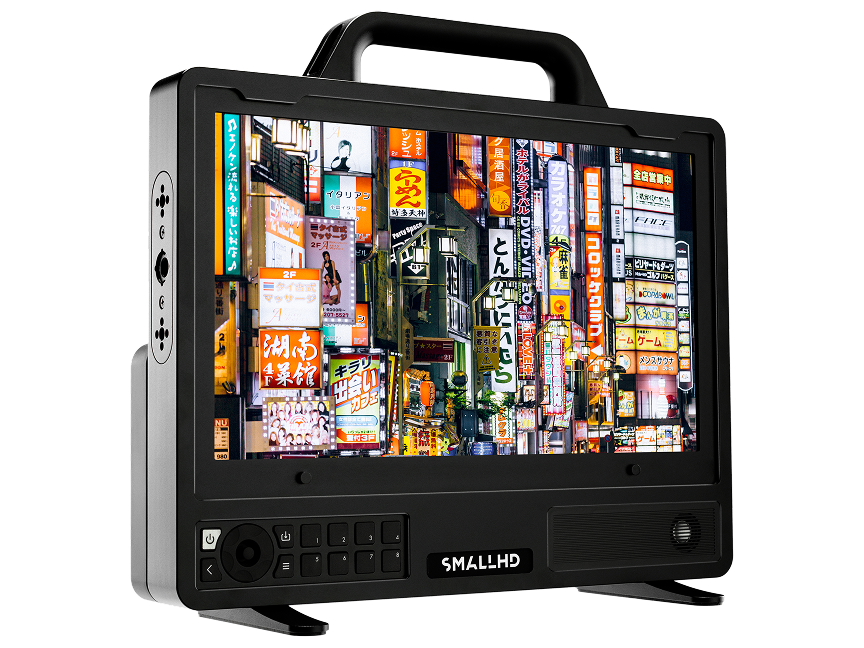

13.3in / 34cm

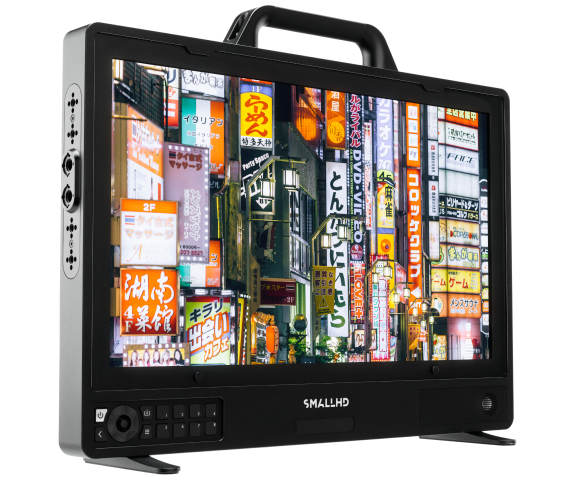

18.4in / 47cm

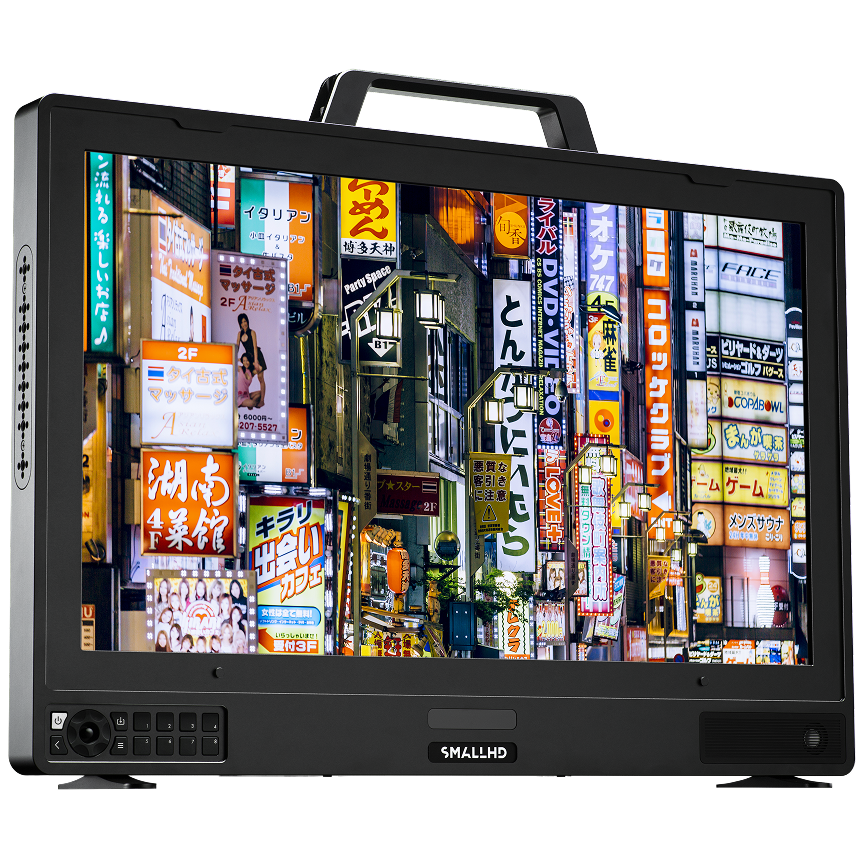

23.8in / 60cm
Weight
Weight
6.8lbs / 3.09kg
11.15lbs / 5.05kg
16.5lbs / 7.5kg
Color Coverage
Color Coverage
100% Rec.709
100% Rec.709
100% Rec.709
95% DCI-P3
Panel Resolution
Panel Resolution
3840 x 2160
3840 x 2160
3840 x 2160
Color Bit Depth
Color Bit Depth
10-bit
10-bit
10-bit
Backlight Type
Backlight Type
LCD (Edge-Lit LED)
LCD (Edge-Lit LED)
LCD (Edge-Lit LED)
Contrast Ratio
Contrast Ratio
1300:1
1300:1
1000:1
Video I/O
Video I/O
4x 12G/6G/3G/
HD-SDI
(multiplex coming soon)
4x 12G/6G/3G/
HD-SDI
(multiplex coming soon)
4x 12G/6G/3G/
HD-SDI
(multiplex coming soon)
Max Brightness
Max Brightness
1500nits
1100nits
1350nits
Power Input
Power Input
Min: 12V 2.9A DC
Max: 34V 1.1A DC
Min: 12V 4.1A DC
Max: 34V 1.3A DC
Min: 12V 8.1A DC
Max: 34V 2.5A DC
Pixel Density
Pixel Density
331ppi
239ppi
185ppi
Bottom Cheese Stick
Bottom Cheese Stick
Included
Sold Separately
Mounting Options
Mounting Options
1x 110mm VESA-compatible
rear mount
26x 1/4”-20 mounting points
4x 3/8”-16 mounting points
1x 110mm VESA-compatible
rear mount
26x 1/4”-20 mounting points
4x 3/8”-16 mounting points
1x 110mm VESA-compatible
rear mount
26x 1/4”-20 mounting points
4x 3/8”-16 mounting points
PageOS
A Dedicated OS
Designed for
Production
Monitors
All our production monitors run on PageOS, which
features the powerful new
functionality of Multi-
View & seamless integration with Calman®
calibration
software on 4K production monitors.
Additionally, PageOS features highly-
anticipated
tools like Look-Around Camera Control on all
pages, EL Zone false
color, Tetrahedral LUT
interpolation, improved HD upscaling, and more.
PageOS
A Dedicated OS
Designed for
Production
Monitors
All our production monitors run on PageOS, which
features the powerful new
functionality of Multi-
View & seamless integration with Calman®
calibration
software on 4K production monitors.
Additionally, PageOS features highly-
anticipated
tools like Look-Around Camera Control on all
pages, EL Zone false
color, Tetrahedral LUT
interpolation, improved HD upscaling, and more.
Color Pipe
Easily configure each of the five independent 4K
video
inputs on
SmallHD 4K Production monitors
with a custom input and output
display
configuration. Convert camera log signals into
multiple
HDR
or SDR display setups, and switch
effortlessly between these
presets with the click of
a function button on any page.
Color Pipe
Easily configure each of the five independent 4K
video
inputs
on
SmallHD 4K Production monitors
with a custom input and output
display
configuration. Convert camera log signals into
multiple
HDR
or SDR display setups, and switch
effortlessly between these
presets with the click of
a function button on any page.
Multi-View
View up to four camera feeds at once on our Cine,
OLED,
and Quantum Series or
up to two camera
feeds on Vision
Series.
Select from
several options
for multi-view
configuration, and
assign scopes and
other video engineering
tools for an
endless variety
of customizable layouts.
Multi-View
View up to four camera feeds at once on our Cine,
OLED,
and Quantum Series or
up to two camera
feeds on Vision
Series.
Select from several
options
for multi-view
configuration, and
assign scopes and
other video engineering
tools for an
endless variety
of customizable layouts.
Integrated Calibration
SmallHD monitors are Calman® Ready, with a seamless
integration
tool for Cine
and OLED 4K Series Production Monitors. Connect
your 4K
monitor via ethernet to
a computer with a
calibration probe
running Portrait Displays® Calman®, and a
calibration LUT
will be
uploaded directly into
your monitor when finished.
Integrated Calibration
SmallHD monitors are Calman® Ready, with a
seamless integration tool for Cine and
OLED 4K
Series Production Monitors. Connect your 4K
monitor via ethernet to a computer with a
calibration probe
running Portrait Displays®
Calman®, and a calibration LUT will be
uploaded
directly into your monitor when
finished.
EL Zone
The stop-based exposure map tool—developed in
collaboration
with legendary
cinematographer, Ed Lachman, ASC—that works
like a virtual
spot meter,
replacing IRE exposure values with
stops.
Sensor data from the camera provides a reference point,
and a false
color represents each stop above
and below 18% gray, allowing for
easier, more intuitive on-set
communication.
EL Zone
The stop-based exposure map tool—developed in
collaboration
with legendary
cinematographer, Ed
Lachman, ASC—that works like a virtual spot
meter, replacing IRE exposure values with stops.
Sensor data from the camera provides a reference
point, and a false color
represents each
stop above
and below
18% gray, allowing for easier, more
intuitive on-set communication.
Livegrade Integration
Pomfort Livegrade is now an integrated plug-in, enabling
colorists
and DITs
to connect their reference monitor with a computer via
single
Ethernet cable,
transforming their monitor
into a dual-
purpose color grading tool.
Livegrade Integration
Pomfort Livegrade is now an integrated plug-in,
enabling
colorists and DITs to
connect their
reference monitor with a computer via single
Ethernet
cable, transforming their monitor into a
dual-purpose color grading tool.
Video Engineering Tools
4K Waveform
Robust exposure tool plotting your images luminance
and chrominance to a graph that matches your screen
left to right.
Vectorscope
Plots the hue + saturation onto a color wheel, so to help
gauge
complimentary color.
Histogram
High resolution, low latency histogram is perfect
for
determining the
overall exposure balance of
your image.
Exposure Measurement
Choose from industry-standard options or create your
own
custom False Color
mapping.
Video Engineering Tools
Explore the most popular Video Engineering tools:
4K Waveform
Robust exposure tool
plotting your images
luminance and
chrominance to a graph
that matches your
screen left to right.
Vectorscope
Plots the hue +
saturation onto a color
wheel,
so to help
gauge
complimentary color.
Histogram
High resolution, low
latency histogram is
perfect for
determining
the overall exposure
balance of your image.
Exposure
Measurement
Choose from industry-
standard options or
create your own custom
False Color mapping.
Bright. Durable.
Lightweight. 4K.
It’s the pro quality you’d
expect from SmallHD.
Bright. Durable.
Lightweight. 4K.
It’s the pro quality you’d
expect from SmallHD.
Bright. Durable.
Lightweight. 4K.
It’s the pro quality you’d expect from
SmallHD.
Bright. Durable.
Lightweight. 4K.
It’s the pro quality you’d expect from
SmallHD.
Jordan Overman
Jordan Overman
Owner, Aerial Cinematographer
Owner, Aerial Cinematographer
Cine Series
Cine Series
Hardware Overview
Hardware Overview
A Unibody Smart Chassis, a full complement of I/O
options, integrated mounting points, and a field-
tested
reputation for lightweight durability.
A Unibody Smart Chassis, a full complement of I/O
options, integrated mounting points, and a field-
tested
reputation for lightweight durability.
QD-LED
Edge-Lit
LCD Panel
Technology
QD-LED
Edge-Lit
LCD Panel
Technology
The LEDs SmallHD sources for Cine Series panels
have the highest
tolerance for color uniformity.
These LEDs are built into an edge-lit
panel stack
that diffuses and focuses the light with a quantum-
dot
film layer to ensure the purest color accuracy.
The result is an
extremely bright monitor with
excellent image fidelity.
The LEDs SmallHD sources for Cine Series panels
have the highest
tolerance for color uniformity.
These LEDs are built into an edge-lit
panel stack
that diffuses and focuses the light with a quantum-
dot
film layer to ensure the purest color accuracy.
The result is an
extremely bright monitor with
excellent image fidelity.
