Indie 7
MON-INDIE-7
Indie 7
MON-INDIE-7
Featuring a user-customizable touchscreen UI powered by PageOS 4 software, compatible with optional Camera Control for RED® DSMC2® & KOMODO™
Model: MON-INDIE-7
Display: 7-inch touchscreen, 1920x1200, 323 PPI
Input: SDI, HDMI, Micro USB
Output: SDI, HDMI 2.0 , ⅛” Headphone Jack, Camera Control
Power Input: 2mm barrel connector (DC 10-34v),Sony L-Series dual battery bracket
$1,449.00
$999.00
Pay in monthly installments with
installments powered by Affirm
QTY:
-
1
+
Ships in 2-3 Weeks. Available Now on Amazon
DESCRIPTION
SPECS
SHIPS WITH
COMPATIBLE WITH
DESCRIPTION
Indie 7 is the vivid, lightweight entry model into SmallHD’s professional 7-inch touchscreen monitor series. This hyper-responsive touchscreen monitor is powered by the user-customizable PageOS 4 software, with a host of internal imaging assistance tools such as Focus Assist, Exposure Assist, and more. Housed in a lightweight, rugged, and thin aluminum chassis, the Indie 7 is designed for heavy production use.
Indie 7 provides a personalized viewing experience designed to improve your workflow. Backed by 1000 nits of brightness, the Indie 7 can be viewed in direct sunlight, allowing you to monitor your production regardless of environment or time of day.

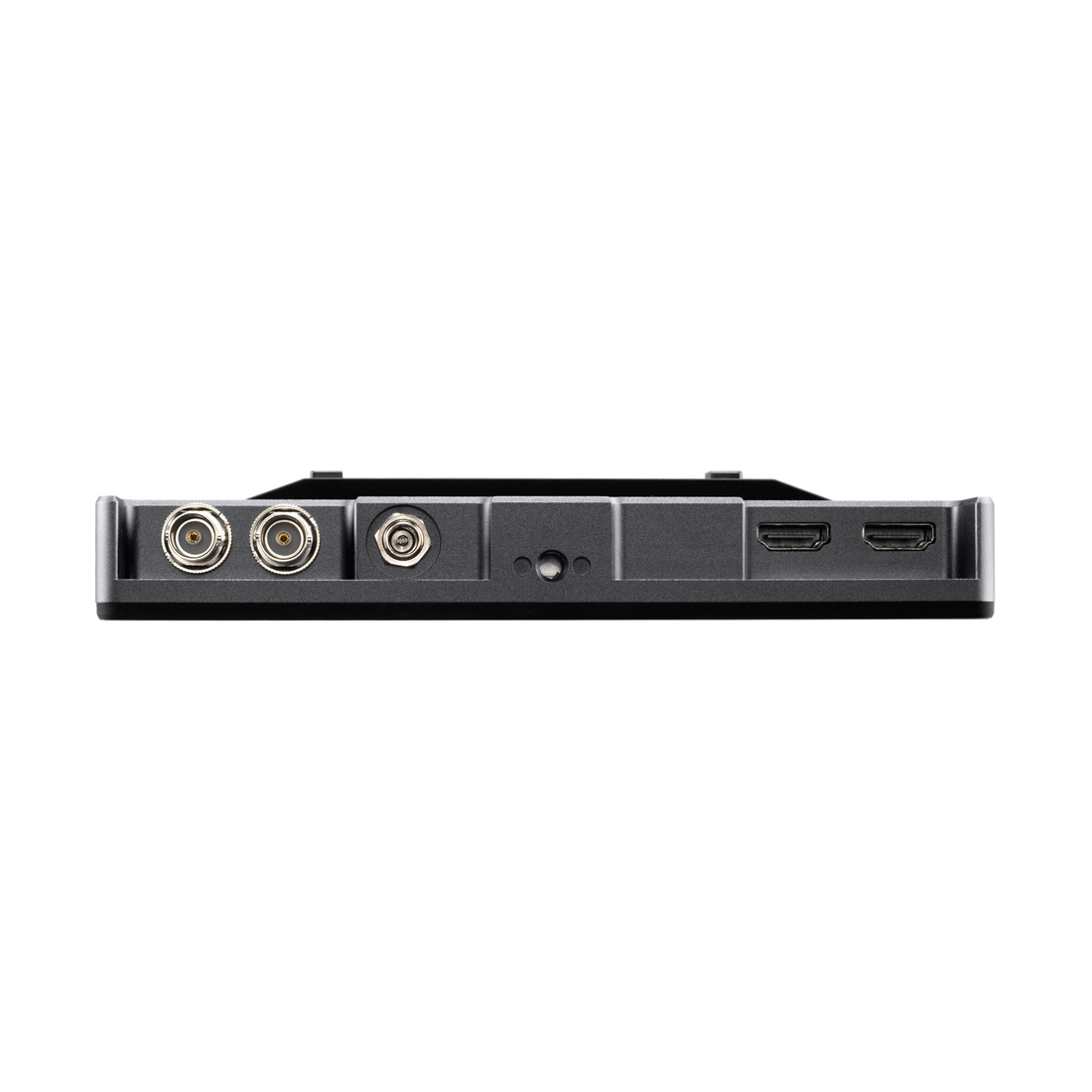

The Indie 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input, a 2mm barrel connector port, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.
Meet Our Smart PageOS Software
With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.
Indie 7 Compatibility
The Indie 7 Monitor is compatible with the Bolt RX Monitor Module. Improve your handheld monitoring workflow with this optional hardware addition to your Indie 7 monitor. Receive cable-free 4K and HDR wireless video from any Bolt 4K series transmitter at a distance of up to 750ft (228m).
Upgrade to Camera Control for RED® DSMC2® & KOMODO™*
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED® DSMC2® & KOMODO™ camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.
SPECS
SKU
SKU
MON-INDIE-7
Product ID
Product ID
5182721785989
Environmental
Item Weight (oz)
18.9
Package Weight (oz)
26
Height (in)
4.67
Width (in)
1.32
Length/Depth (in)
7.09
Compliance
FCC, IC, CE, RoHS
Operating Temperature
30F to 100F
Storage Temperature
0F to 120F
Mount Points
Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction
Anodized aluminum chassis
Display
Panel Type
IPS LCD Touchscreen
Diagonal Size
7.02
Resolution
1920x1200
Pixel Density
323
Aspect Ratio
16:9
Active Area
5.95 x 3.72
Max Brightness
1000 Nits
Contrast
1000:1
Color Depth
10-bit Processing (8-bit panel)
Viewing Angle
160
Backlight Type
LED
Adjustable Backlight
Yes
Refresh Rate
Synchronizes with input from 48Hz to 60Hz
Input Signal
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types
YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio Output Types
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
SDI
1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI
1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio
1x 3.5mm 3-pin Stereo Headphone Jack
Power In
Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
USB
1x USB 2.0 Micro-B receptacle
Controls
Primary
Touch Screen
Record Capture
Image Capture Tool
Power
Connector
Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
Voltage
DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Consumption
17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)
Battery Plate Included
L-Series standard (V Mount or Gold Mount optional accessories)
Power Supply
Recommend DC 12~15V at ~2.5 amp or greater
Battery Types
L-Series, V Mount, Gold Mount
Overload Protection
DC input: Reverse polarity
Battery Chemistry
Li-ion
Battery Charging Time
Monitor does not support the charging of batteries
Software
Pixel Zoom
1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides
Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate
Automatic or Manual Control
Image Flip
Automatic or Manual Control
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI
Focus Assist
User Adjustable Color Style and Intensity
Peaking
User Adjustable Intensity
False Color
Rainbow, Arri Style, Custom with up to 10 nodes
Zebra
Dual - User Configurable
Waveform
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Fully User Customizable
Histogram
Luma & RGB Style
Image Capture
Yes
Custom LUTS
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream
Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import
via SD Card or USB Storage Device
Overlay
With Opacity Slider and Blink Setting
Audio Meters
HDMI & SDI up to 8 channel
