Cine 7 ARRI Kit
MON-CINE7-ARRI
Cine 7 ARRI Kit
MON-CINE7-ARRI
Everything you need for Camera Control for ARRI and over $900 in bundled savings!
Model: MON-CINE7-ARRI-KIT
Display: 7-inch, 1920X1200
Brightness: 1800 nits
HDMI: 1x HDMI In, 1x HDMI Out
SDI: 1x 3G SDI In, 1x 3G SDI In/Out
Audio: ⅛” Headphone Jack
Power: 2-pin Locking Power Input (10V-34V, 2A DC), Sony Battery Bracket
Camera Control: ARRI
DESCRIPTION
SPECS
SHIPS WITH
COMPATIBLE WITH
DESCRIPTION
Promotion begins February 12, 2025. Valid on new orders only and excludes refurbished & B-Stock inventory. Offer only available at smallhd.com while supplies last.
Our Cine 7 ARRI Kit bundles everything you need to control your ARRI camera from SmallHD’s Cine 7 monitor. Each component of the kit has been designed to pair our Cine 7 with your camera, helping simplify shoots by giving you camera control from the touchscreen monitor.

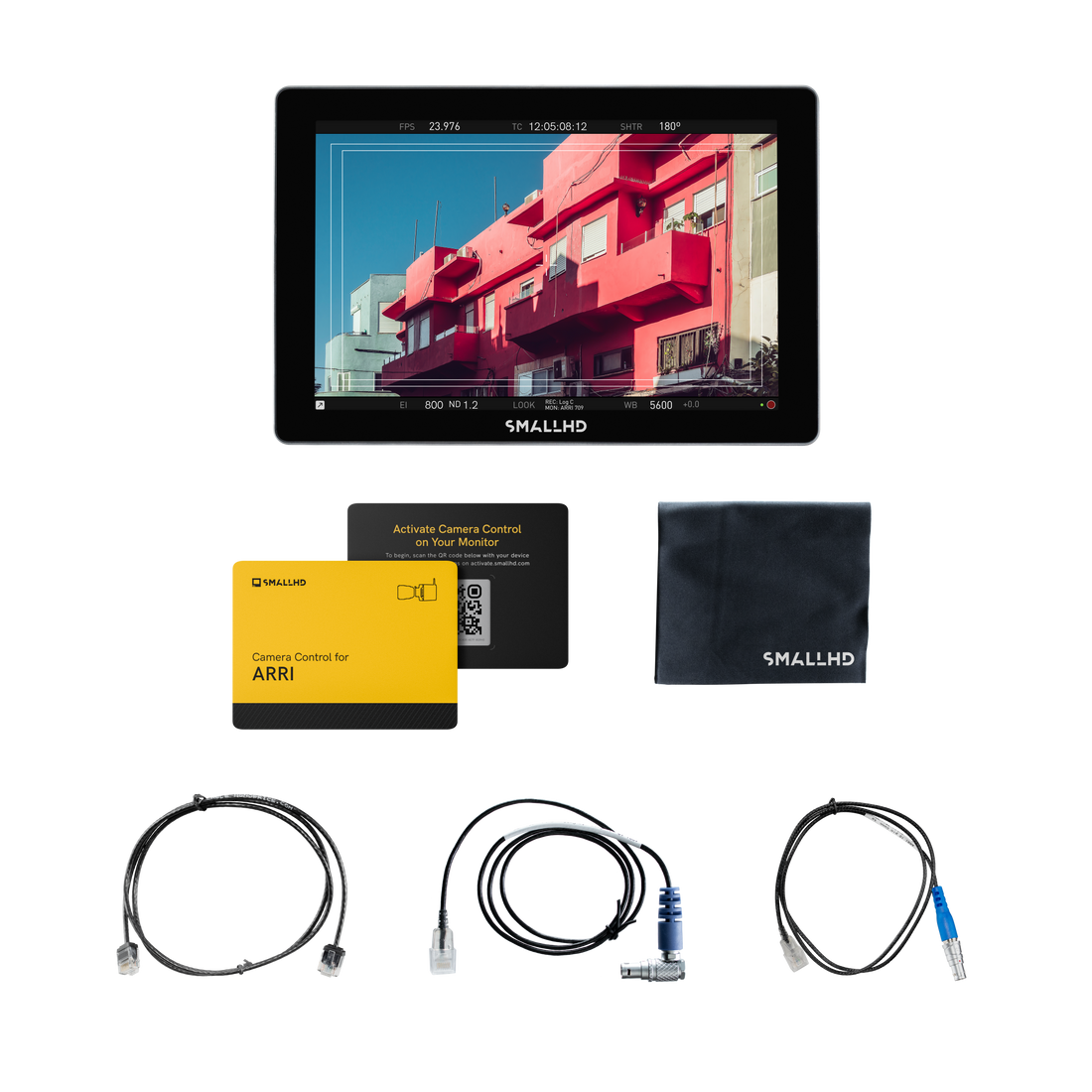

The Cine 7 ARRI Kit includes our Cine 7 monitor, SmallHD Cleaning Cloth, Smart 7 Sunhood, screen protector, camera control software for ARRI camera, SD card, and essential cables.
(Custom cable for ARRI 35 Control Sold separately)
Explore the Cine 7 ARRI Kit

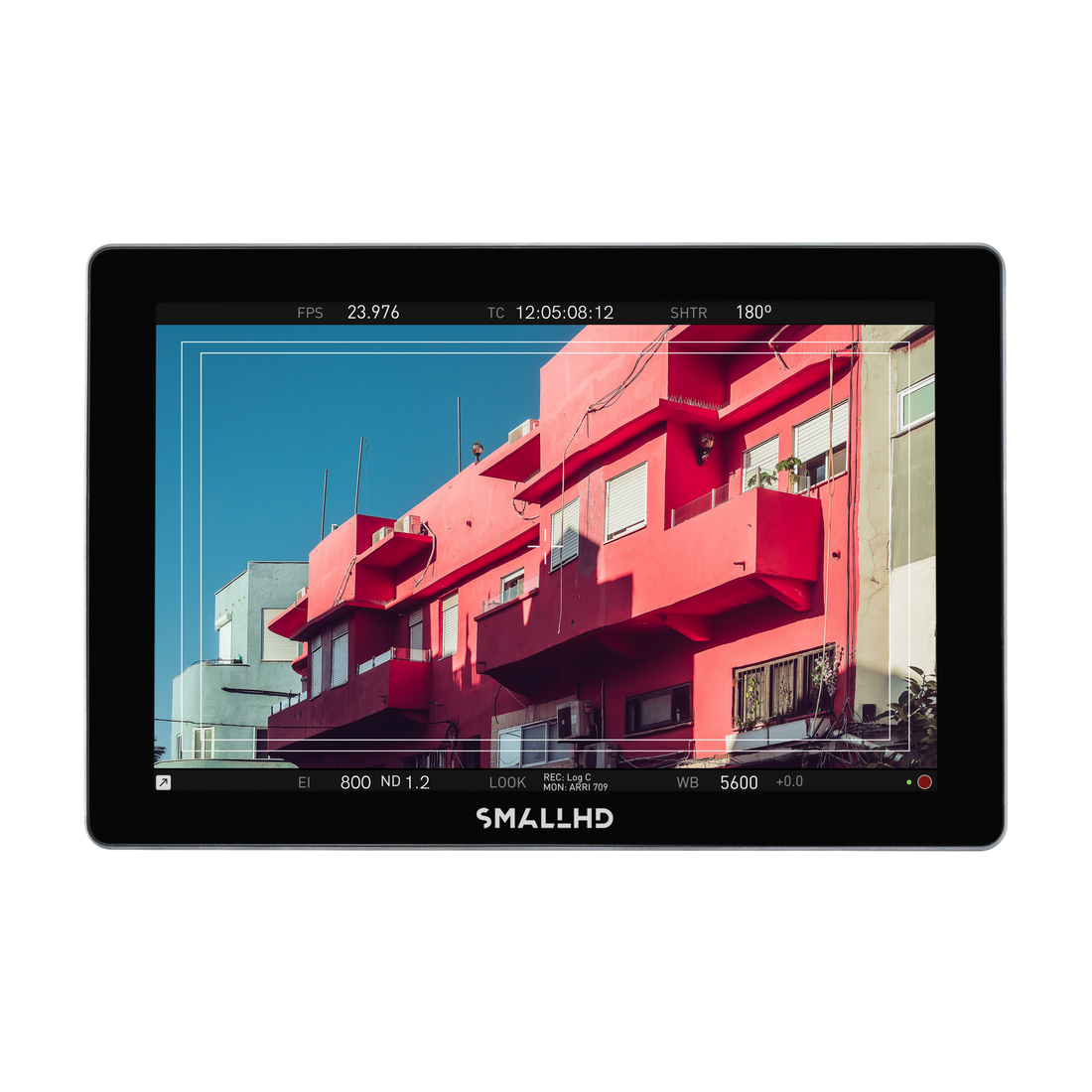

Cine 7 Monitor
Cine 7 is the ultimate 7” on-camera HD monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and 4K and HDR compatibility. View your production in full sunlight thanks to 1800 nits of brightness and save your favorite tools, functions, and setting pages in one tap with PageOS 4.
The Full HD 7-inch IPS LCD display with 1920x1200 resolution ensures a clear look at your production, while 10-bit color processing in 100% DCI-P3 offers color accuracy. This guarantees the image on screen reflects what’s being captured by the camera. No matter the time of day, environment, or sunlight, you’ll get a clear, glare-free view of your monitor thanks to 1800 nits of brightness.
The Cine 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.
With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

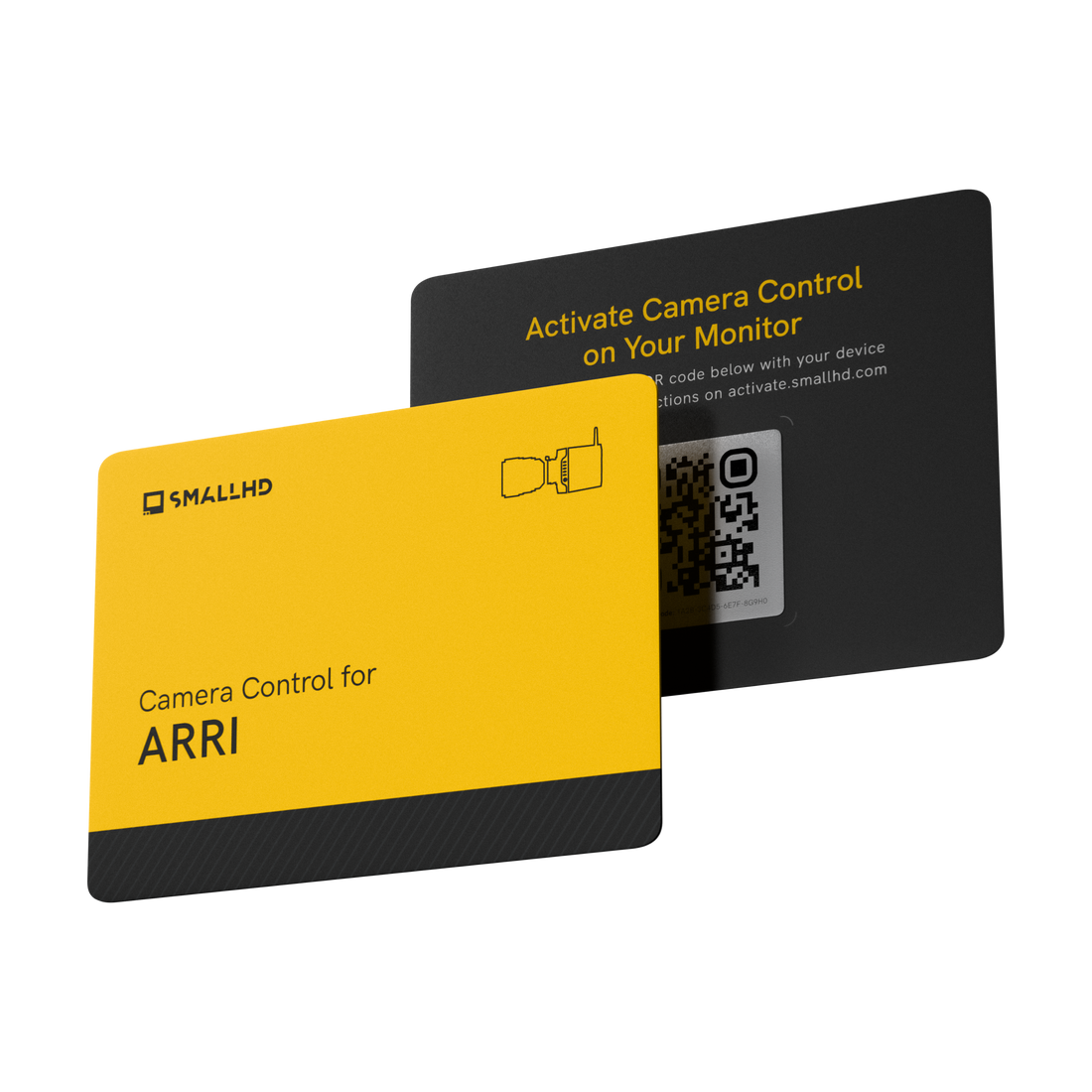

Camera Control for ARRI (Software Only)
This Software License is a digital download that allows you to unlock access to camera control for ARRI cameras via a software activation code. Quickly access essential ARRI camera settings with intuitive, user friendly controls on the Cine 7.
Included Cables

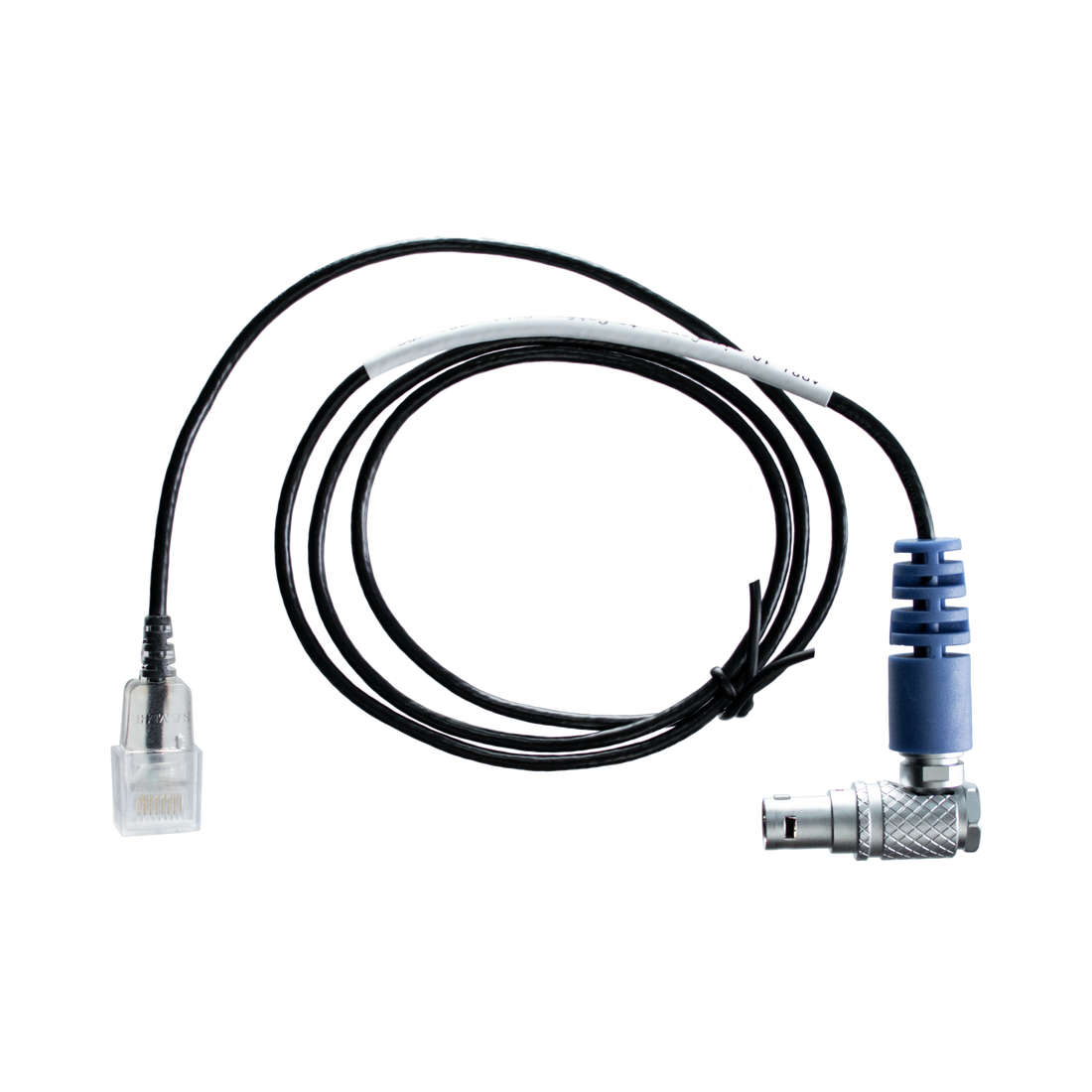

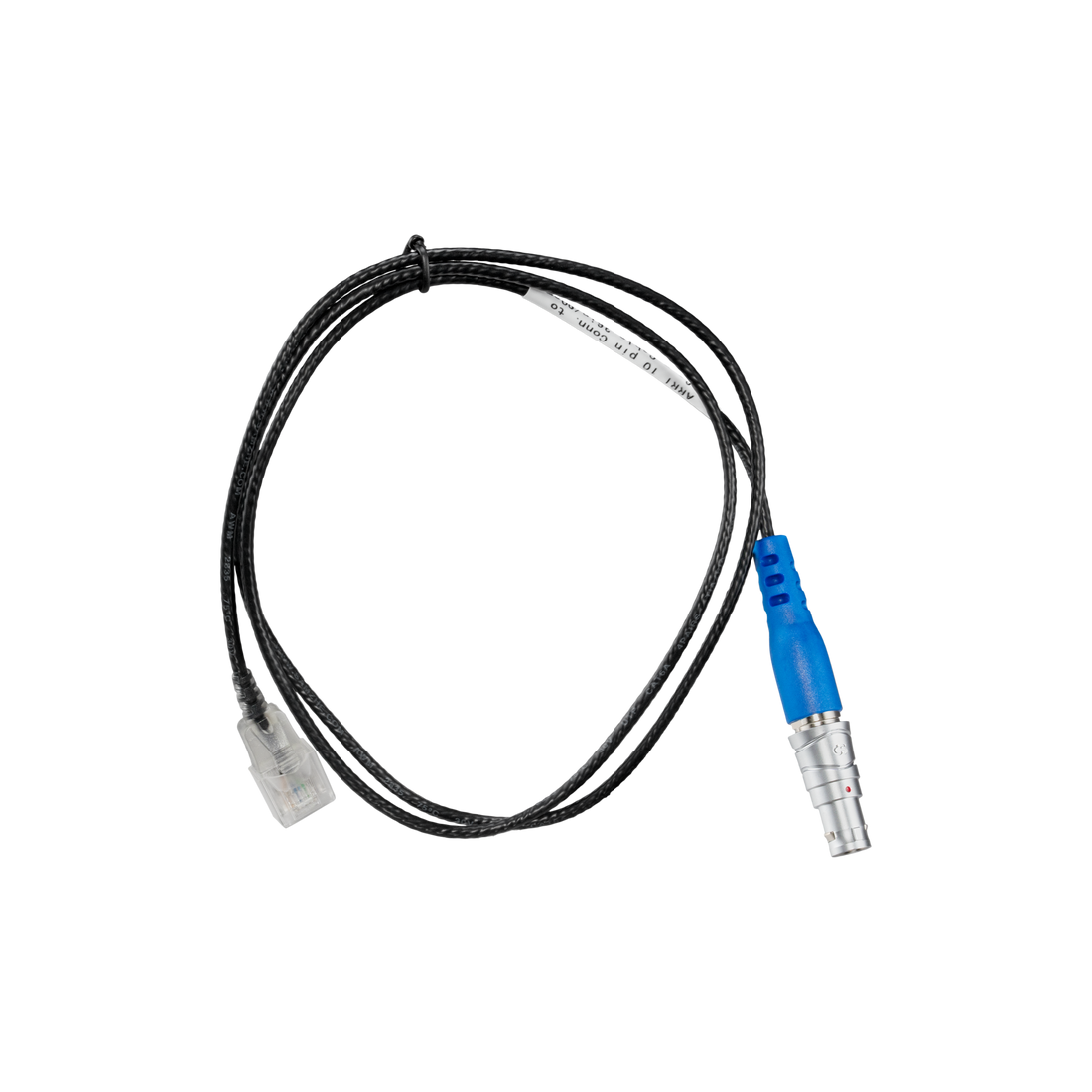

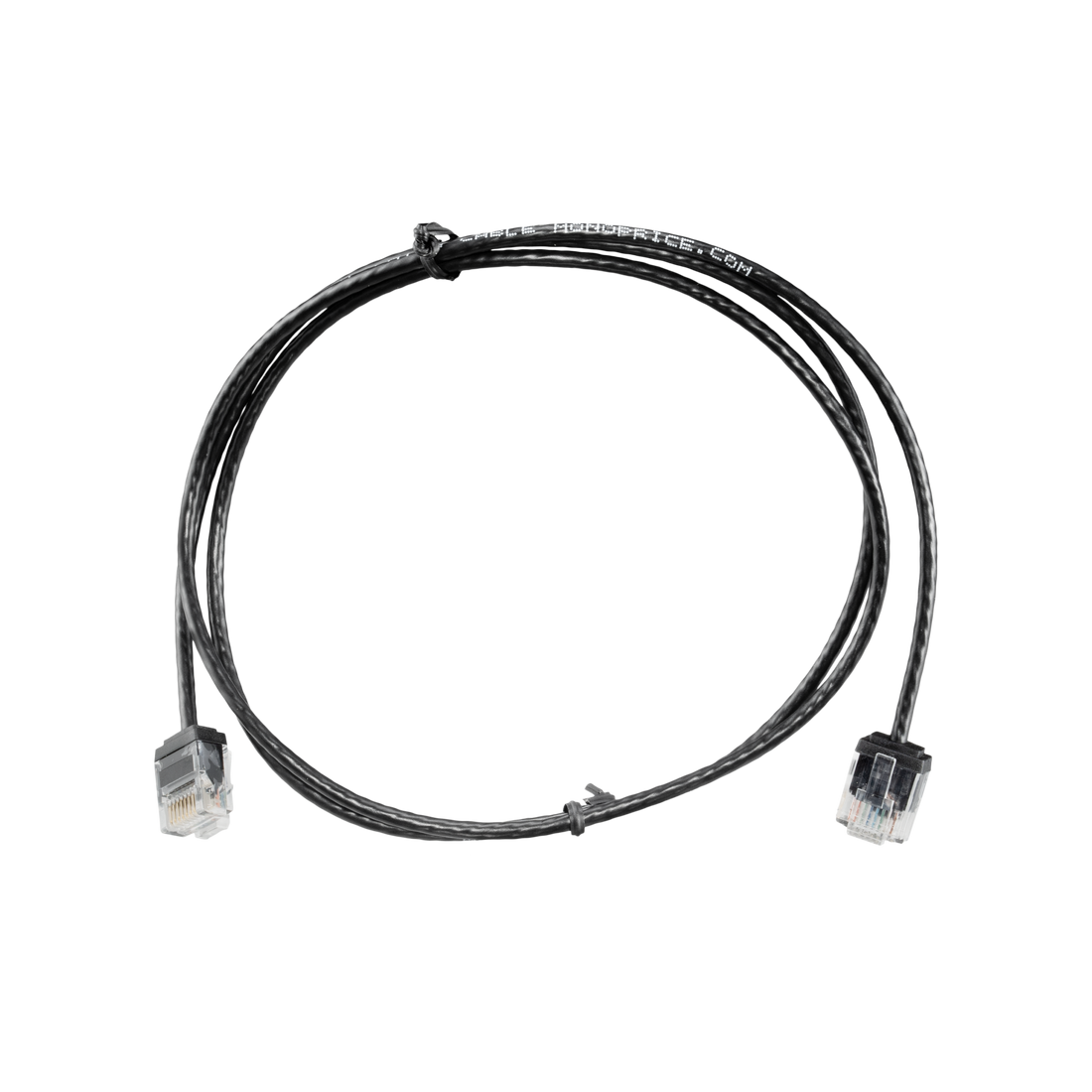

The Cine 7 ARRI Kit includes the 36-inch Slim Ethernet Cable, which features two RJ45 connectors at each end. Also included is the D-Tap to 2pin Power Cable, which is wired in an ARRI standard configuration with a 36 inch cable length. Lastly is the ARRI Alexa Camera Control Cable, a cable that connects to the ALEXA camera with its right-angle LEMO-type 10-pin connector, and the ethernet end plugs into the monitor.
SmallHD Cleaning Cloth
SmallHD Cleaning Cloth, made from a non-abrasive material, is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
Smart 7 Sunhood
Block out the sun with this rugged and easy to attach sunhood. Quickly convert from 3-sided to 4-sided with easy to access snaps. Also includes mounting brackets with ¼ 20 mounting points to mount accessories to your monitor.
UltraClear Screen Protector Smart 7
Add scratch resistance and polarization to your Cine 7 monitor with this clear stick-on screen protector.
8GB SD Card
Store your 3D LUTS and captured images.
Disclaimer: Once any camera control is registered in your SmallHD monitor, it can not be removed or transferred to a different monitor
SPECS
SKU
SKU
MON-CINE7-ARRI
Product ID
Product ID
5039201583237
Environmental
Item Weight (oz)
20
Package Weight (oz)
32
Height (in)
4.67
Width (in)
1.32
Length/Depth (in)
7.09
Compliance
FCC, IC, CE, RoHS
Operating Temperature
30F to 100F
Storage Temperature
0F to 120F
Mount Points
Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction
Anodized aluminum chassis
Display
Panel Type
IPS LCD
Diagonal Size
7.02
Resolution
1920x1200
Pixel Density
322 ppi
Aspect Ratio
16:9
Active Area
5.95 x 3.72
Max Brightness
1800 NITs
Contrast
1000:1
Gamut
100% DCI-P3 Coverage
Color Depth
10-bit Processing (8-bit panel)
Viewing Angle
160
Backlight Type
LED
Adjustable Backlight
Yes
Input Signal
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types
YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio Output Types
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
SDI
1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI
1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio
1x 3.5mm 3-pin Stereo Headphone Jack
Power In
2-pin Locking
USB
1x USB 2.0 Micro-B receptacle
Controls
Primary
Touch Screen
Record Capture
Image Capture Tool
Power
Connector
LEMO
Voltage
DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Power Supply
Recommend DC 12~15V at ~2.5 amp or greater
Battery Types
L-Series (included), V Mount, Gold Mount
Overload Protection
DC input: Reverse polarity
Battery Chemistry
Li-ion
Battery Charging Time
Monitor does not support the charging of batteries
Software
Pixel Zoom
1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides
Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate
Automatic or Manual Control
Image Flip
Automatic or Manual Control
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI
Focus Assist
User Adjustable Color Style and Intensity
Peaking
User Adjustable Intensity
False Color
Rainbow, Arri Style, Custom with up to 10 nodes
Zebra
Dual - User Configurable
Waveform
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Fully User Customizable
Histogram
Luma & RGB Style
Image Capture
Yes
Custom LUTS
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream
Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import
via SD Card or USB Storage Device
Overlay
With Opacity Slider and Blink Setting
Audio Meters
HDMI & SDI up to 8 channel
