703 UltraBright V-Mount Directors Kit
MON-703U-VM-DK
703 UltraBright V-Mount Directors Kit
MON-703U-VM-DK
The Brightest 7-inch monitor available with V-Mount battery plate and lightwieght monitor handles.
Model: MON-703U
Input: 2-SDI, HDMI
Output: SDI, HDMI
Display: 7-inch, 1920x1080, 2200nits, Gorilla Glass
Power Consumption: 13 watts
Weight: 26 oz
Input: 2-SDI, HDMI
Output: SDI, HDMI
Display: 7-inch, 1920x1080, 2200nits, Gorilla Glass
Power Consumption: 13 watts
Weight: 26 oz
DESCRIPTION
SPECS
SHIPS WITH
COMPATIBLE WITH
BUNDLES
DESCRIPTION
This item is currently out of stock. Visit our channel partners for immediate availability.
Our 703 Ultrabright V-Mount Director’s Kit is designed to improve your monitoring experience and simplify directing. Each component of the kit has been created to compliment the 703 Ultrabright, working together to create your ideal monitoring rig.

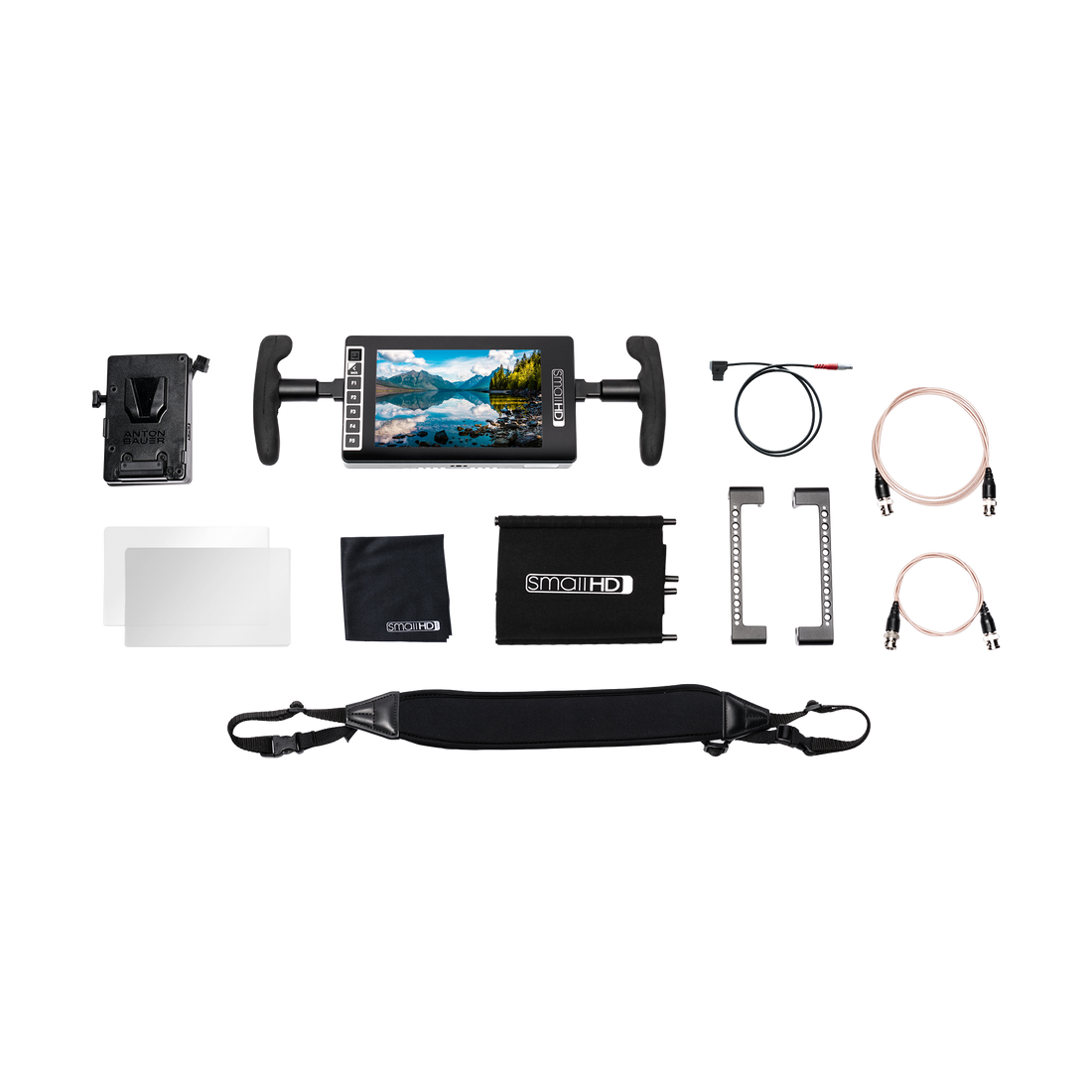

The 703 director’s kit includes our daylight-viewable 703 Ultrabright monitor, monitor handles and neck strap, V-Mount battery bracket, sunhood and cage, clear and matte screen protectors, cleaning cloth, and adaptor cables.
Explore the 703 UltraBright V-Mount Director’s Kit

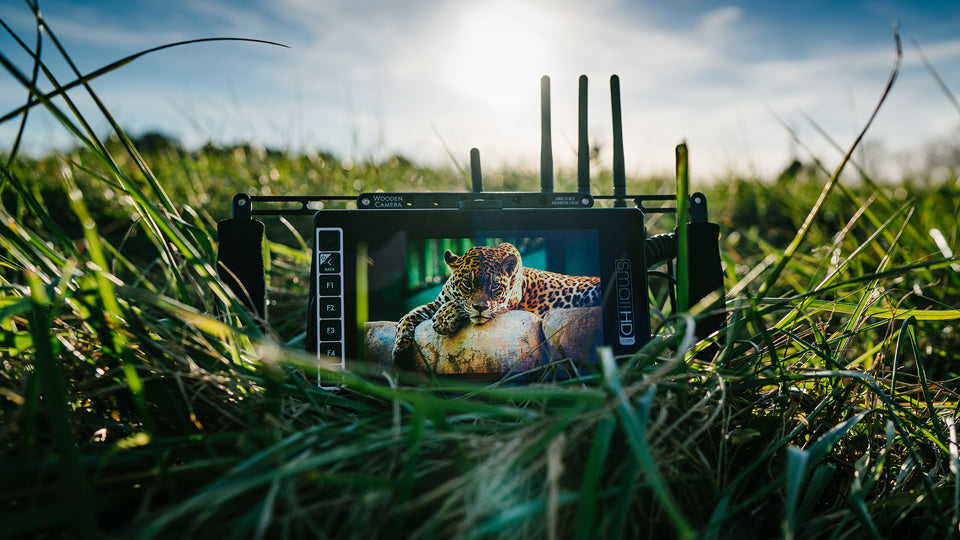

703 UltraBright Monitor
The 703 Ultrabright On-Camera Monitor is built for every environment, featuring a daylight viewable screen, durable design, professional software toolset, and five user function buttons. The 703 Ultrabright is made of an aluminum housing with optically bonded gorilla glass display, making this one of the most durable monitors in the field.
Thanks to 2,200 nits of brightness and HDR preview, projects can be viewed in color-accuracy in full sunlight. So no matter the time of day or environment, you can guarantee a glare-free look at your production. This seven-inch monitor has a resolution of 1800p and features HDR Preview with a 10-Bit ColorEngine. And despite being one of our brightest seven-inch monitors available, the 503 maintains low power consumption. Load any 3D LUT via SD card using SmallHD’s ColorFlow 3D LUT engine.
The 703 Ultrabright features both a 3G SDI and HDMI input, a 3G SDI and HDMI output, and two locking 2-pin Connectors, one for power input and one for power distribution to an external device. In addition to 2-pin power, this kit includes a V-Mount battery plate.
With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

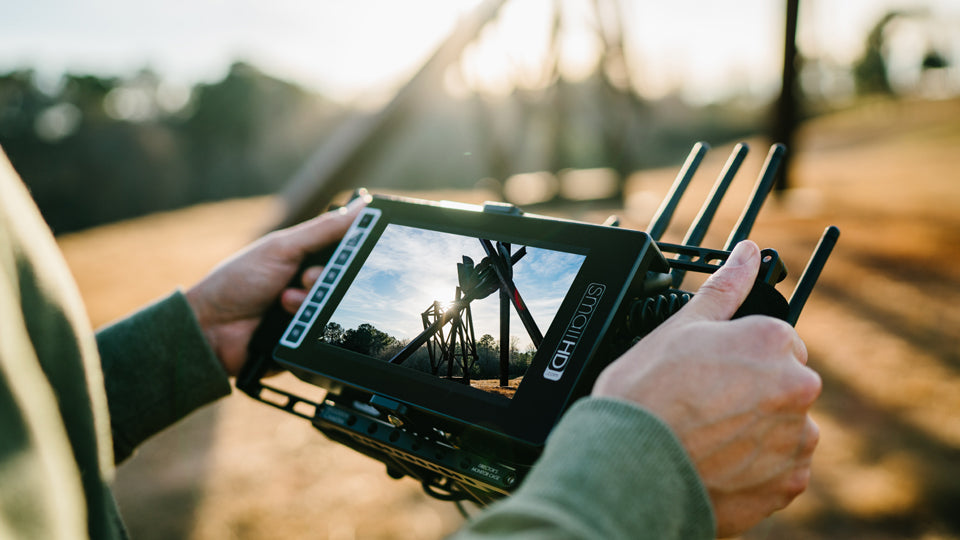

Monitor Handles and Neck Strap
SmallHD’s lightweight black rubber handles with an anti-spin connection and neoprene neck strap. Our handles and neck strap simplify viewing and allow your monitor to move with you. The Monitor Handles and Neck Strap work with most SmallHD monitors.
Sunhood Cage Combo for 703 Ultrabright
Add privacy and extra glare-protection with our 703 sunhood. The Sunhood Cage Combo for 703 Ultrabright includes a sunhood and cage, which is required for mounting the hood. The cage comprises two metal brackets that attach to the sides of the monitor and provide 1/4"-20 and 3/8"-16 accessory threads as well as slots for the hood.
V-Mount Battery Bracket for 703 Bolt and UltraBright Series
The battery plate features a solid locking system that prevents your professional battery from accidentally disconnecting.
Clear Screen Protector and Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright
Eliminate unwanted reflections and small scuffs with our clear and matte screen protectors.
SmallHD Cleaning Cloth
SmallHD Cleaning Cloth, made from a non-abrasive material, is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
12-inch Thin SDI Cable, 48-inch Thin SDI Cable, and D-Tap to 2pin Power Cable 36in
With SmallHD's Thin SDI Cables (12in and 48in) you can snake almost any component you have in your rig, making it ideal for use with Compact Cameras, EVFs, or on-camera monitors that use SDI. The D-Tap 2pin to Power Cable has a standard D-Tap on one end and a 0B, 2 pin LEMO compatible connector on the other.
SPECS
SKU
SKU
MON-703U-VM-DK
Product ID
Product ID
4377654100101
Environmental
Item Weight (oz)
26.4
Package Weight (oz)
37
Height (in)
4.88
Width (in)
8.38
Length/Depth (in)
1.13
Compliance
FCC, IC, CE, RoHS
Operating Temperature
0 - 100 degrees F
Storage Temperature
-4 - 120 degrees F
Screen Protection
AR Coated Gorilla Glass Optical Bonding on Panel
Mount Points
1 ¼”-20 Thread on Top of Monitor, 1x ¼”-20 Thread on Bottom of Monitor
Construction
Anodized Aluminum Unibody Chassis
Display
Panel Type
LTPS LCD
Diagonal Size
7.02
Resolution
1920 x 1080
Pixel Density
323 ppi
Aspect Ratio
16:9
Active Area
7.02
Max Brightness
2200 nits
Contrast
1200:1
Gamut
100% Rec 709
Color Depth
10-Bit Color Intelligence Engine
Viewing Angle
178 Degrees (CR<10)
Backlight Type
White LED
Adjustable Backlight
Yes
Input Signal
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI Input Types
YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio Input Types
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI Output Types
YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio Output Types
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
SDI
1x 3g Input, 1x 3g Output
HDMI
1x Input, 1x Output
Component
Not Supported
Composite
Not Supported
Audio
1x ⅛” Headphone Jack
Power In
1x Locking 2-pin Connector
Power Out
1x Locking 2-pin Connector for Power distribution to an external device (Requires Power Input)
USB
1x Micro USB
Controls
Primary
Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons
Data I/O
Storage Media
SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
USB
USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving.
Power
Connector
2x Locking 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)
Voltage
With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Input: 12 - 34V Max
Consumption
TBD
Power Supply
Included
Overload Protection
Yes
Output Voltage
Mirrors Input Voltage
Software
Pixel Zoom
2x & 4x with smooth pan via pinch zoom gesture
Frame Guides
Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Underscan Only
Anamorphic De-Squeeze
1.33x, 1.5x, 1.66x, 2.0x
Image Rotate
Automatic or Manual Control
Image Flip
Automatic or Manual Control
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI
Focus Assist
User Adjustable Color Style and Intensity
Peaking
User Adjustable Intensity
False Color
Spectrum, Arri Style and Fully User Customizable
Zebra
Dual - User Configurable
Waveform
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
PIP
No
RGB Parade
Fully User Customizable
Histogram
Luma & RGB Style
Horizon Indicator
No
Image Capture
With Dedicated Button and Image Gallery
Custom LUTS
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Creation
No
LUT Downstream
Applied on Output Preview Page
LUT Import
Via SD Card or USB Storage Device
Overlay
Opacity Slider and Blink Setting
Audio Meters
Up to 8 channel
