503 UltraBright On-Camera Monitor
MON-503U
DESCRIPTION
SPECS
SHIPS WITH
COMPATIBLE WITH
BUNDLES
DESCRIPTION
This item has is no longer stocked. Please view our Smart 5 Monitors for other options.

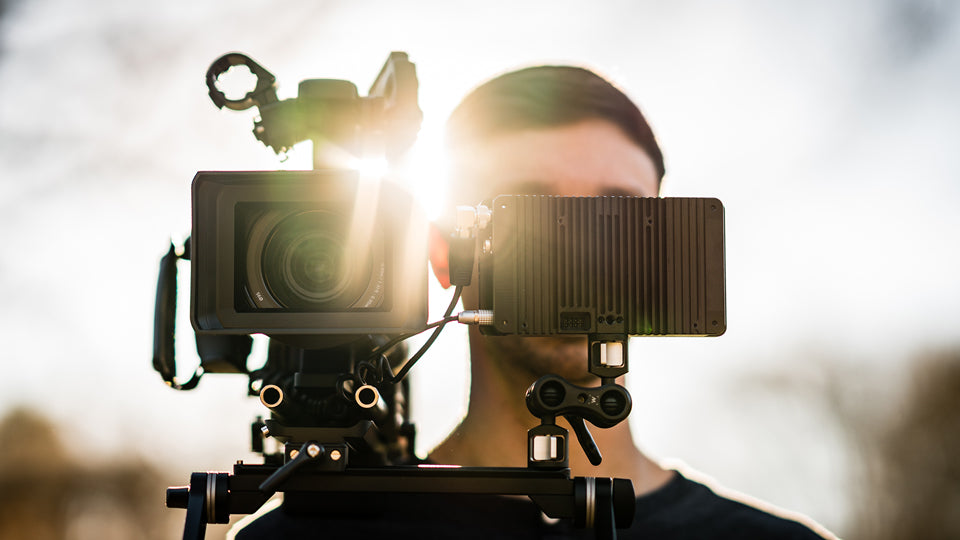

The 503 Ultrabright On-Camera Monitor, a monitor built for every environment, features a daylight viewable screen, durable design, professional software toolset, and two user function buttons. The 503 Ultrabright is made of a mill aluminum housing with optically bonded gorilla glass display, making this one of the most durable monitors in the field.

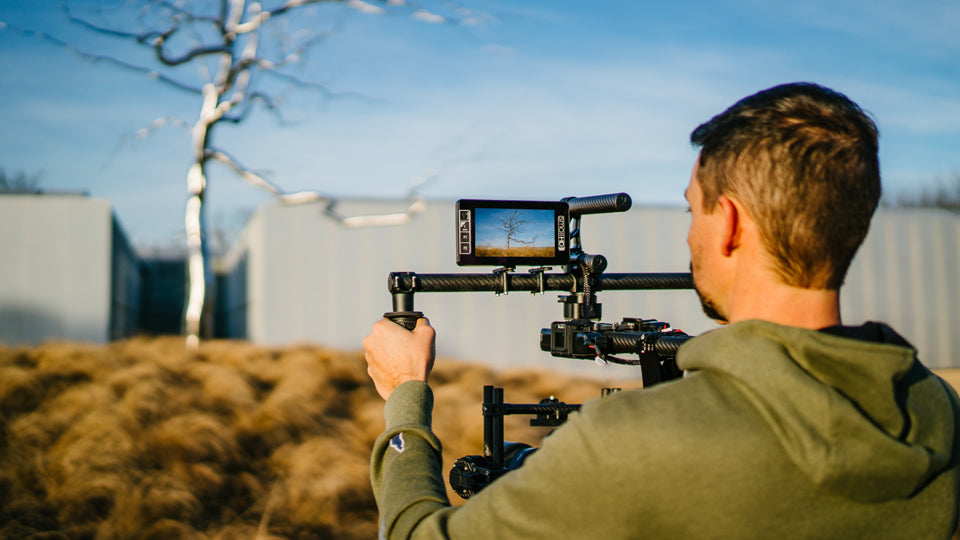

Thanks to 2,200 nits of brightness and HDR preview, projects can be viewed in color-accuracy in full sunlight. So no matter the time of day or environment, you can guarantee a glare-free look at your production. This five-inch monitor has a resolution of 1800p and features HDR Preview with a 10-Bit ColorEngine. And despite being one of our brightest five-inch monitors available, the 503 maintains low power consumption. Load any 3D LUT via SD card using SmallHD’s ColorFlow 3D LUT engine.
The 503 Ultrabright features both a 3G SDI and HDMI input, a 3G SDI and HDMI output, and two locking 2-pin Connectors, one for power input and one for power distribution to an external device. In addition to 2-pin power, Gold Mount, V-Mount, and Sony L-Series battery plates are available separately.
Meet Our Smart PageOS Software
With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.
SPECS
SKU
SKU
MON-503U
Product ID
Product ID
4377648889989
Environmental
Item Weight (oz)
15.2
Package Weight (oz)
25
Height (in)
3.36
Width (in)
6.16
Length/Depth (in)
1.13
Compliance
FCC, IC, CE, RoHS
Operating Temperature
0 - 100 degrees F
Storage Temperature
-4 - 120 degrees F
Screen Protection
AR Coated Gorilla Glass Optical Bonding on Panel
Mount Points
1 ¼”-20 Thread on Top of Monitor, 1x ¼”-20 Thread on Bottom of Monitor, 1x ¼”-20 Thread on back of Monitor @ Bottom Center
Construction
Anodized Aluminum Unibody Chassis
Display
Panel Type
IPS LCD
Diagonal Size
5
Resolution
1920 x 1080
Pixel Density
443 ppi
Aspect Ratio
16:9
Active Area
4.9
Max Brightness
2200 nits
Contrast
1000:1
Gamut
100% Rec 709
Color Depth
10-Bit Color Intelligence Engine
Viewing Angle
170 degrees Typical
Backlight Type
White LED
Adjustable Backlight
Yes
EVF
Variable Field of View
range
Input Signal
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI Input Types
YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio Input Types
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI Output Types
YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60,720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio Output Types
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
SDI
1x 3g Input, 1x 3g Output
HDMI
1x Input, 1x Output
Component
Not Supported
Composite
Not Supported
Audio
1x ⅛” Headphone Jack
Power In
1x Locking LEMO 2-pin Connector
USB
1x Micro USB
Controls
Primary
Joystick Navigation, Dedicated Back/Power Button. 2 Additional User Assignable Function Buttons
Data I/O
Storage Media
SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
USB
USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving
Power
Connector
1x Locking LEMO 2-pin Connectors: for Power Input
Voltage
With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max
Consumption
11 watts
Power Supply
Included
Overload Protection
Yes
Software
Pixel Zoom
2x & 4x Zoom with smooth pan via joystick
Frame Guides
Yes: Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate
Yes - Automatic or Manual Control
Image Flip
Yes - Automatic or Manual Control
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI
Focus Assist
Yes - User Adjustable Color Style and Intensity
Peaking
Yes - User Adjustable Intensity
False Color
Yes - Rainbow & Arri Style
Zebra
Yes - Dual - User Configurable
Waveform
Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Yes - Fully User Customizable
Histogram
Yes - Luma & RGB Style
Image Capture
Yes - With Dedicated Button
Custom LUTS
Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream
Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page.
LUT Import
via SD Card or USB Storage Device
Overlay
Yes with Opacity Slider and Blink Setting
Firmware
Compatible with 1300-1700-2400-3200 Firmware VX.x and later. Firmware Version to support 503UB & 703UB Does not yet exist. Version number not yet known.
Audio Meters
Yes - HDMI & SDI up to 8 channel
