Our 503 Ultrabright Gold Mount Kit bundles the SmallHD accessories needed to streamline and improve your monitoring experience. Each component of the kit has been designed to compliment the 503 Ultrabright monitor, working together to create your ideal monitoring rig.

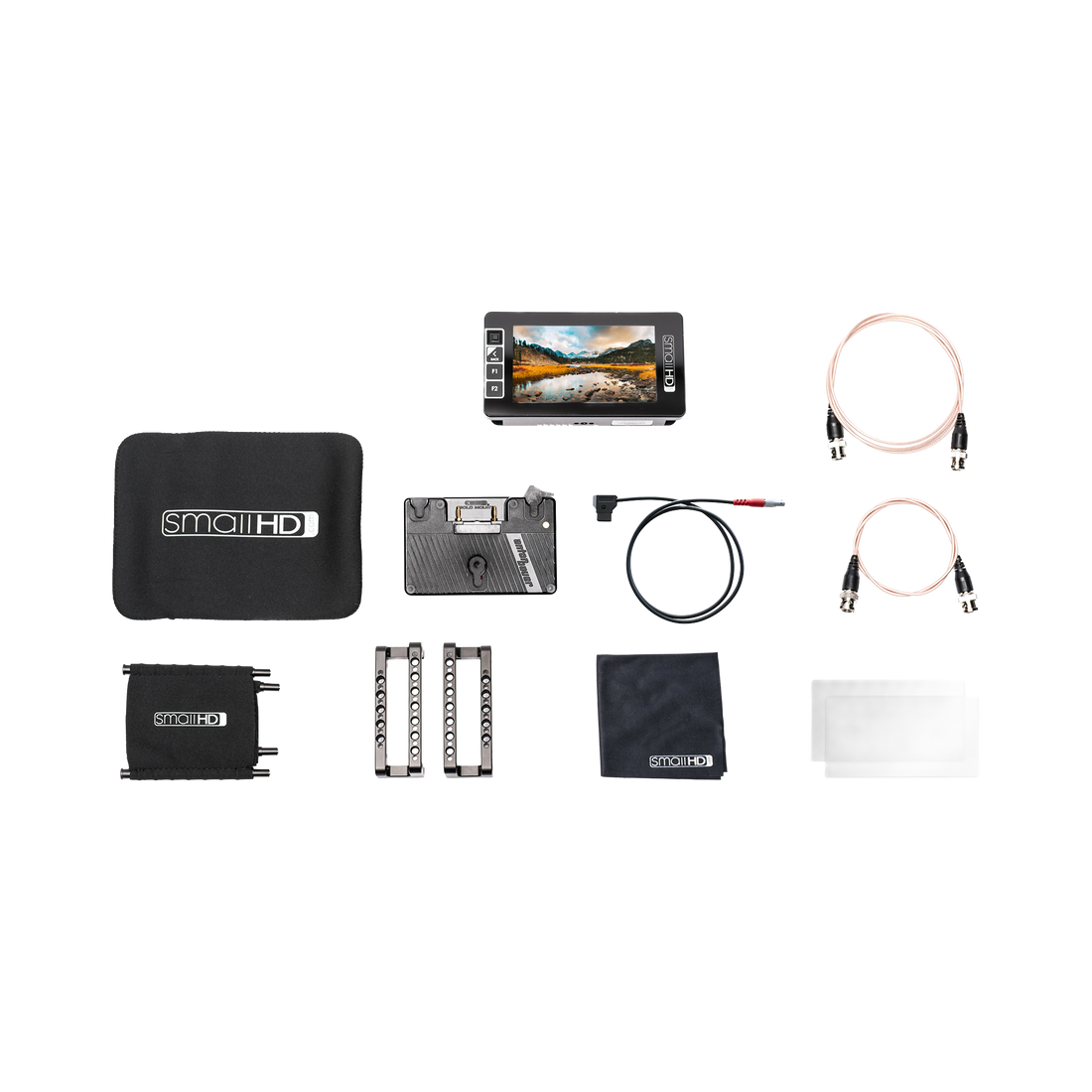

The 503 Gold Mount kit includes our daylight-viewable 503 Ultrabright monitor, Gold Mount battery bracket, sunhood and cage, 5 inch neoprene sleeve, matte screen protector, and adaptor cables.

Explore the 503 UltraBright Gold Mount Kit

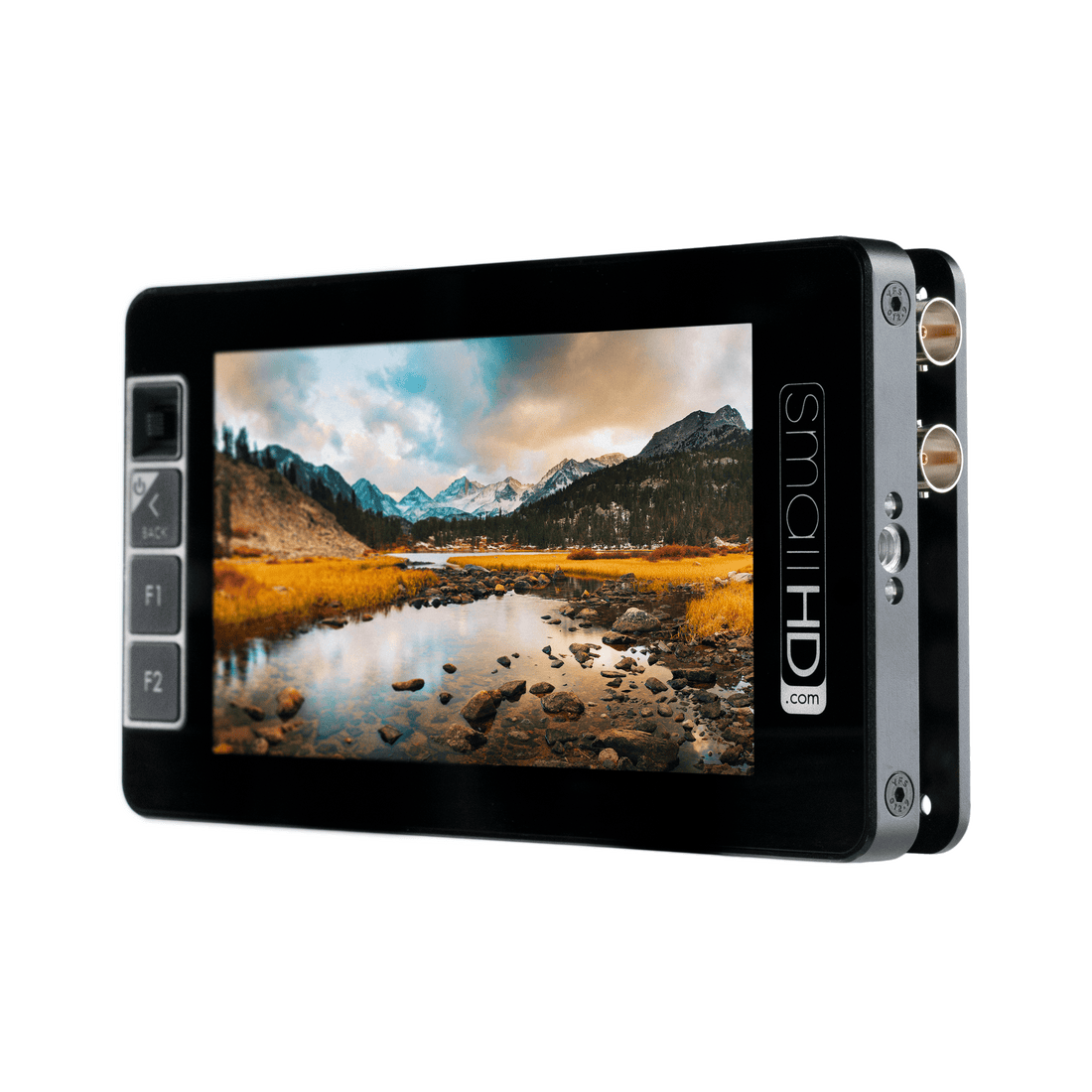

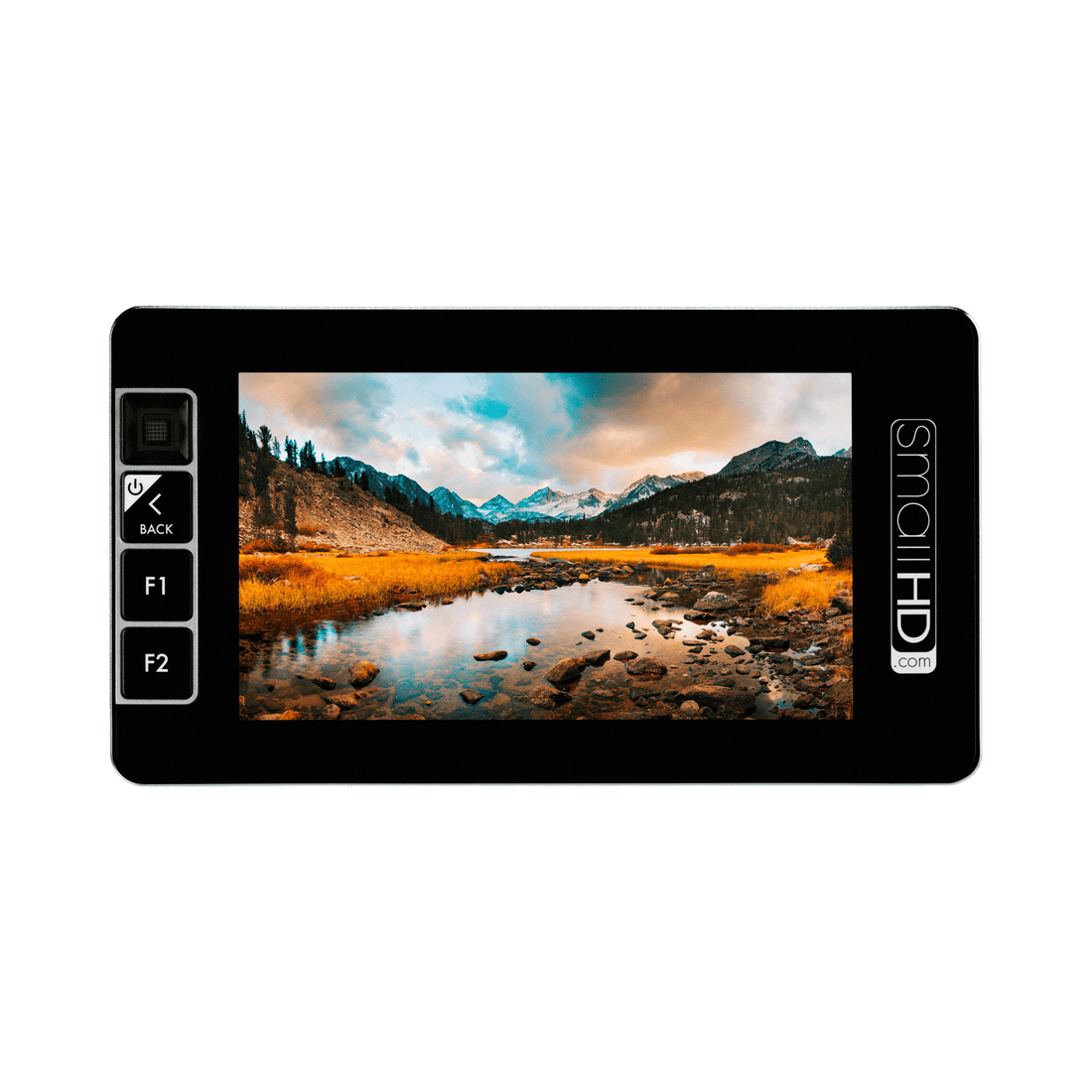

503 Ultrabright Monitor

The 503 Ultrabright On-Camera Monitor, a monitor built for every environment, features a daylight viewable screen, durable design, professional software toolset, and two user function buttons. The 503 Ultrabright is made of a milled aluminum housing with optically bonded gorilla glass display, making this one of the most durable monitors in the field.

Thanks to 2,200 nits of brightness and HDR preview, projects can be viewed in color-accuracy in full sunlight. So no matter the time of day or environment, you can guarantee a glare-free look at your production. This five-inch monitor has a resolution of 1800p and features HDR Preview with a 10-Bit ColorEngine. And despite being one of our brightest five-inch monitors available, the 503 maintains low power consumption. Load any 3D LUT via SD card using SmallHD’s ColorFlow 3D LUT engine.

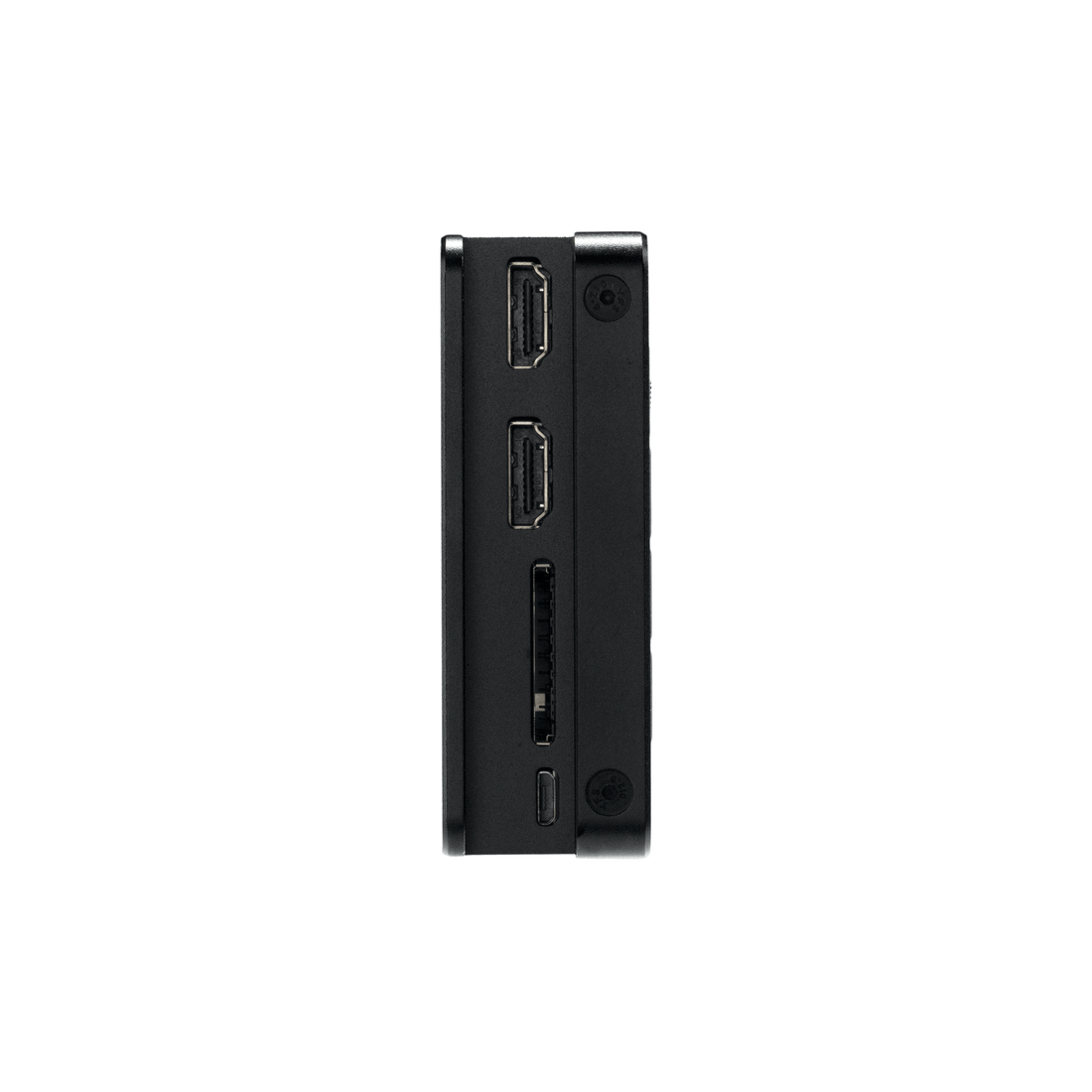

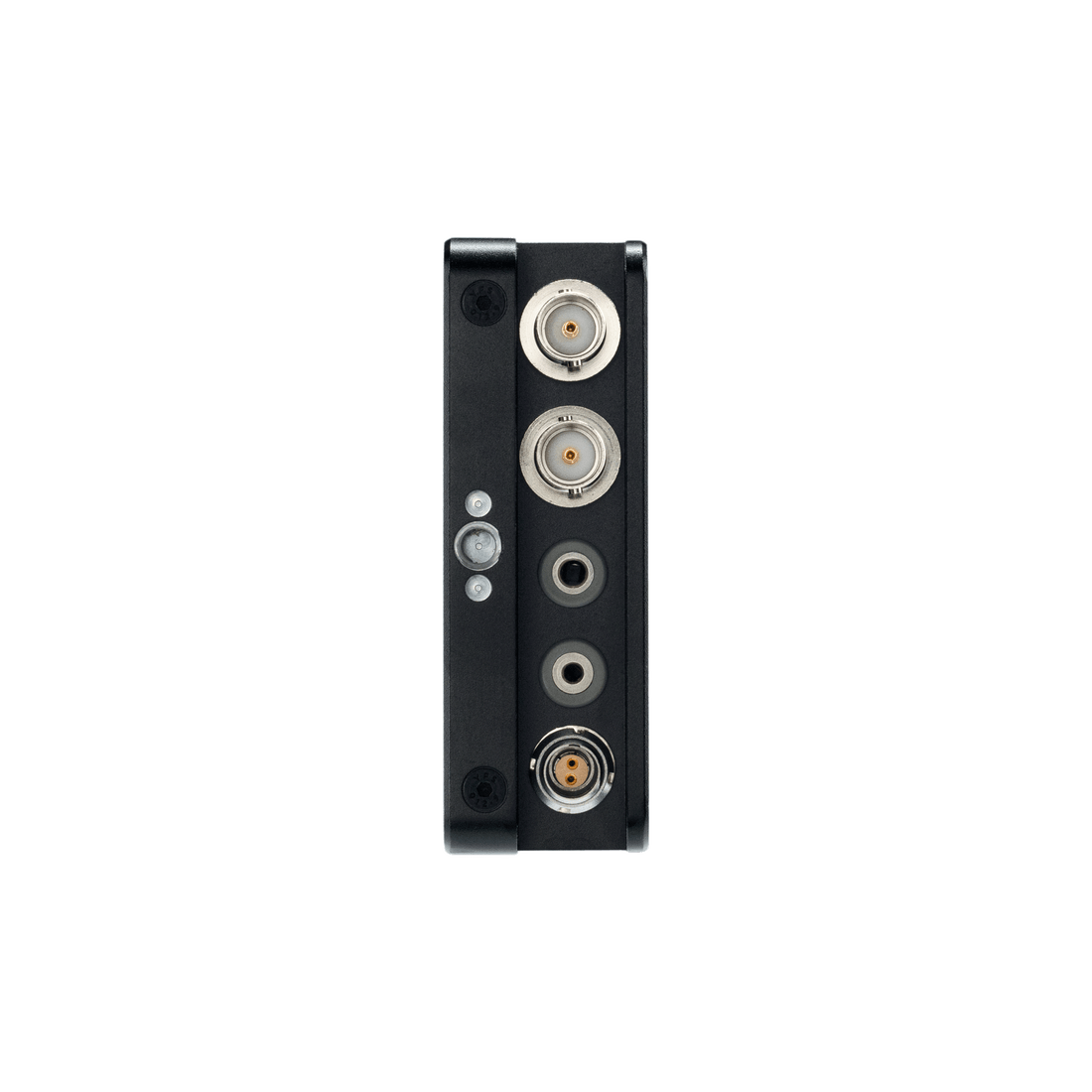

The 503 Ultrabright features both a 3G SDI and HDMI input, a 3G SDI and HDMI output, and two locking 2-pin connectors, one for power input and one for power distribution to an external device. In addition to 2-pin power, this kit includes a Gold Mount battery plate.

With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

Sunhood Cage Combo for 503 Ultrabright

Add privacy and extra glare-protection with our 503 sunhood. The Sunhood Cage Combo for 503 Ultrabright includes a sunhood and cage, which is required for mounting the hood. The cage comprises two metal brackets that attach to the sides of the monitor and provide 1/4"-20 and 3/8"-16 accessory threads as well as slots for the hood.

Gold Mount Battery Bracket for 703 Bolt and Ultrabright Series

The battery plate features a solid locking system that prevents your professional battery from accidentally disconnecting.

5-Inch Neoprene Sleeve

Protect your 503 Ultrabright from scratches and dings from other gear in your bag with this padded neoprene sleeve.

Ultra Matte Screen Protector for 503 Ultrabright

Eliminate unwanted reflections and small scuffs with our matte screen protectors.

12-inch Thin SDI Cable, 48-inch Thin SDI Cable, and D-Tap to 2pin Power Cable 36in

With SmallHD's Thin SDI Cables (12in and 48in) you can snake almost any component you have in your rig, making it ideal for use with Compact Cameras, EVFs, or on-camera monitors that use SDI. The D-Tap 2pin to Power Cable has a standard D-Tap on one end and a 2-pin connector on the other.
