Set-ready construction meets suite-ready performance in Vision Series 4K Monitors. Experience true PQ1000 HDR in DCI 4K resolution, whether you’re shooting on location or finishing in post.

Set-ready construction meets suite-ready performance in Vision Series 4K Monitors. Experience true PQ1000 HDR in DCI 4K resolution, whether you’re shooting on location or finishing in post.

Shop Now

10-bit

10-bit

Color Depth Color Depth

DCI-P3

DCI-P3

Color Gamut Color Gamut

1000nits

1000nits

Full Screen Luminance Full Screen Luminance

1,000,000:1

1,000,000:1

Contrast Ratio Contrast Ratio

DCI 4K

DCI 4K

Resolution (Vision 24) Resolution (Vision 24)

PageOS

PageOS

Software Software

Compare
Vision Monitors

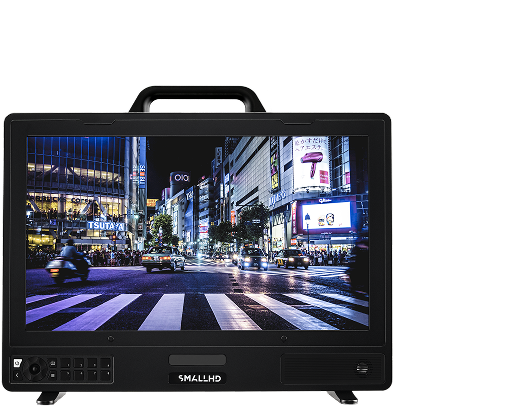

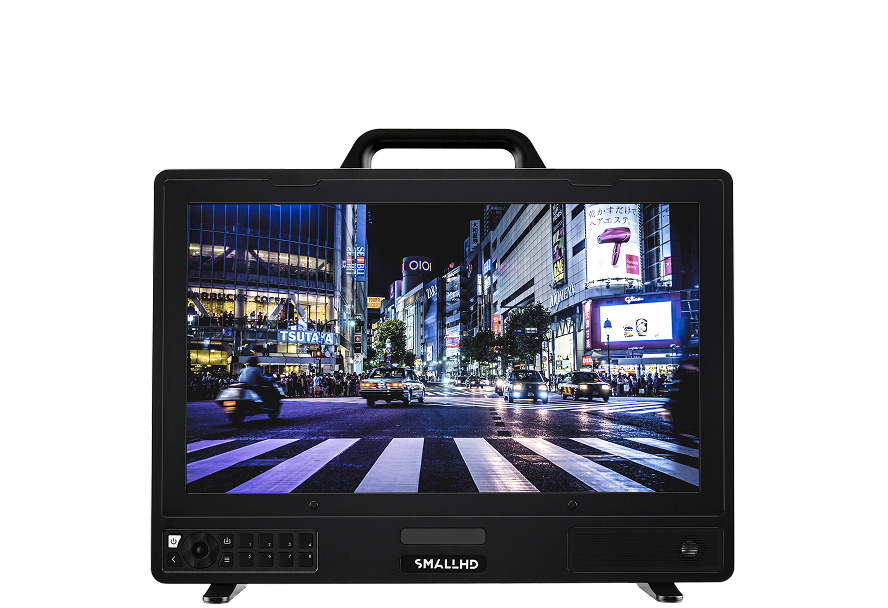

Vision 17
Vision 17 Buy

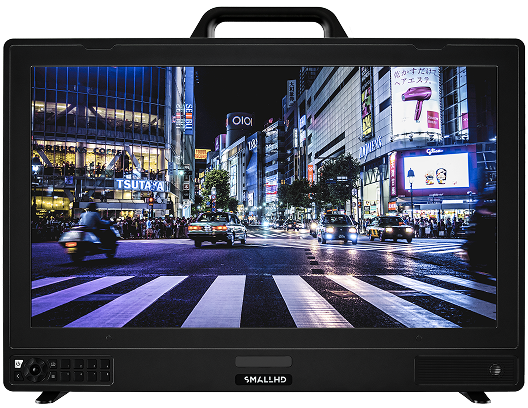

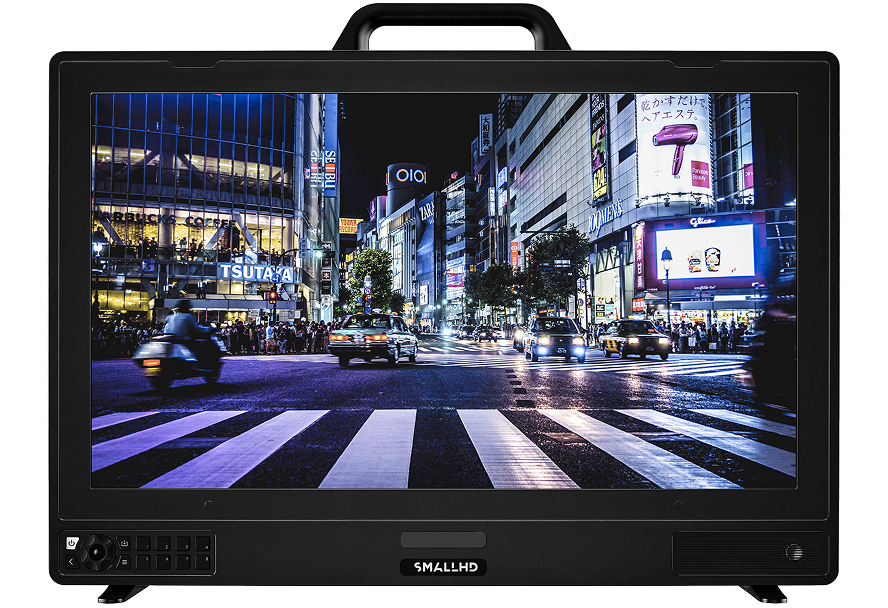

Vision 24
Vision 24 Buy

Display Size

17.3in / 44cm
24.1in / 61cm

Weight

12.9lbs / 5.8kg
22.7lbs / 10.3kg

Color Coverage

98.8% DCI-P3
98.8% DCI-P3

Panel Resolution

3840 x 2160
4096 x 2160

Color Bit Depth

10-bit
True 10-bit

Backlight Type

Full-Array Local Dimming
Full-Array Local Dimming

Contrast Ratio

1,000,000:1
1,000,000:1

Video I/O

4x 12G/6G/3G/HD-SDI
HDMI 2.0
4x 12G/6G/3G/HD-SDI
HDMI 2.0

Max Brightness

1000nits
1000nits

Power Input

14.4V 6.2A DC
22V 8.3A DC

Pixel Density

254ppi
192ppi

Bottom Cheese Stick

Included
Sold Separately

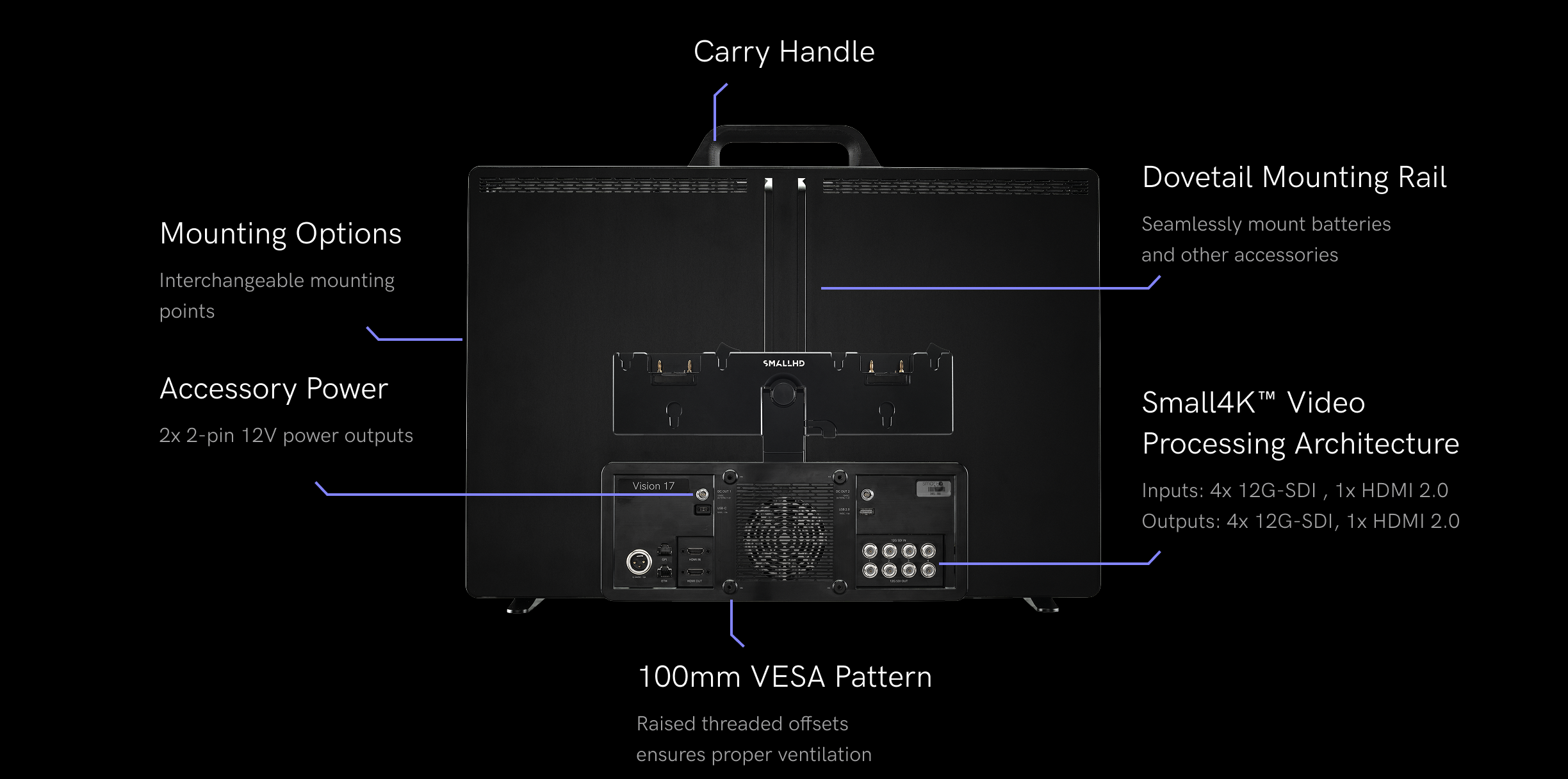

Mounting Options

1x 110mm VESA-compatible rear mount
26x 1/4”-20 mounting points
4x 3/8”-16 mounting points
1x 110mm VESA-compatible rear mount
26x 1/4”-20 mounting points
4x 3/8”-16 mounting points

PAGEOS 5

PAGEOS 5

A Dedicated OS
Designed for
Production
Monitors

A Dedicated OS
Designed for
Production
Monitors

All our production monitors run on PageOS, which features the powerful new functionality of Multi-View & seamless integration with Calman® calibration software on 4K production monitors. Additionally, PageOS introduces highly-anticipated tools like Look-Around Camera Control on all pages, EL Zone false color, Tetrahedral LUT interpolation, improved HD upscaling, and more.

All our production monitors run on PageOS, which features the powerful new functionality of Multi-View & seamless integration with Calman® calibration software on 4K production monitors. Additionally, PageOS introduces highly-anticipated tools like Look-Around Camera Control on all pages, EL Zone false color, Tetrahedral LUT interpolation, improved HD upscaling, and more.

See What’s New in PageOS 5

Color Pipe

Easily configure each of the five independent 4K video inputs on
SmallHD 4K Production monitors with a custom input and output
display configuration. Convert camera log signals into multiple
HDR or SDR display setups, and switch effortlessly between these
presets with the click of a function button on any page.

Multi-View

View up to two camera feeds at once on Vision Series 4K Monitors. Select from several options for multi-view configuration, and assign scopes and other software tools for an endless variety of customizable layouts.

Integrated Calibration

SmallHD monitors are Calman® Ready, with a seamless integration
tool for Cine and OLED 4K Series Production Monitors. Connect
your 4K monitor via ethernet to a computer with a calibration
probe running Portrait Displays® Calman®, and a calibration LUT
will be uploaded directly into your monitor when finished.

integrated-calibration
integrated-calibration

EL Zone

The stop-based exposure map tool—developed in collaboration
with legendary cinematographer, Ed Lachman, ASC—that works
like a virtual spot meter, replacing IRE exposure values with stops.
Sensor data from the camera provides a reference point, and a
false color represents each stop above and below 18% gray,
allowing for easier, more intuitive on-set communication.

Livegrade Integration

Pomfort Livegrade is now an integrated plug-in, enabling colorists
and DITs to connect their reference monitor with a computer via single Ethernet cable, transforming their monitor into a dual-
purpose color grading tool.

Video Engineering Tools

4K Waveform Robust exposure tool plotting your images luminance and
chrominance to a graph that matches your screen left to right.
Vectorscope Plots the hue + saturation onto a color wheel, so to help gauge
complimentary color.
Histogram High resolution, low latency histogram is perfect for determining the
overall exposure balance of your image.
Exposure Measurement Choose from industry-standard options or create your own custom
False Color mapping.

Pro Testimonials

"With 4K HDR and SDR deliverables, the need has grown for color accuracy and critical focus visual verification. The Vision Series fills a space between a field monitor and a display that is dedicated to color grading. The usefulness of 4K monitors growing across departments to help communicate ideas and changes within frame. Higher demands for premium content need these tools that help lift productions to new heights."

PHIL HOLLAND
Founder, Director and Cinematographer

“I have really leaned on lighting everything from my Vision 17... This monitor is amazing, the color accuracy is on point, so are the brightness options. It’s a fantastic lighting monitor for HDR and SDR.”

GRAHAM ROBBINS
Cinematographer

“The Vision monitors can be used not only in the studio, but also in rough terrain, when we only can run on battery - which we will test when we shoot in forests and caves. This shows again that the whole SmallHD 4K Series is more than perfect for use on set and not only in studio."

CHRISTIAN SAURE
DIT

Lightweight. Durable.
4K HDR.

Lightweight. Durable.
4K HDR.

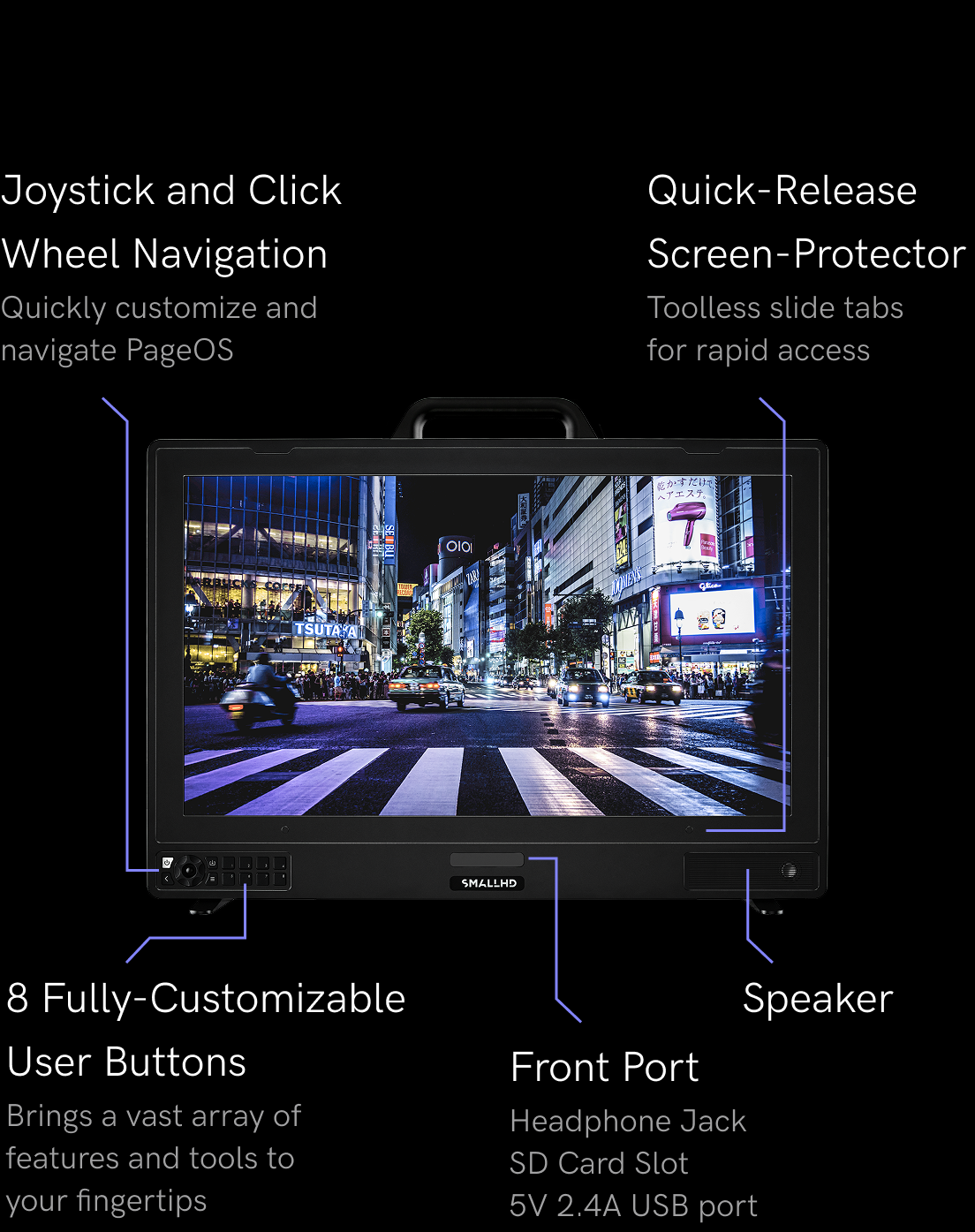

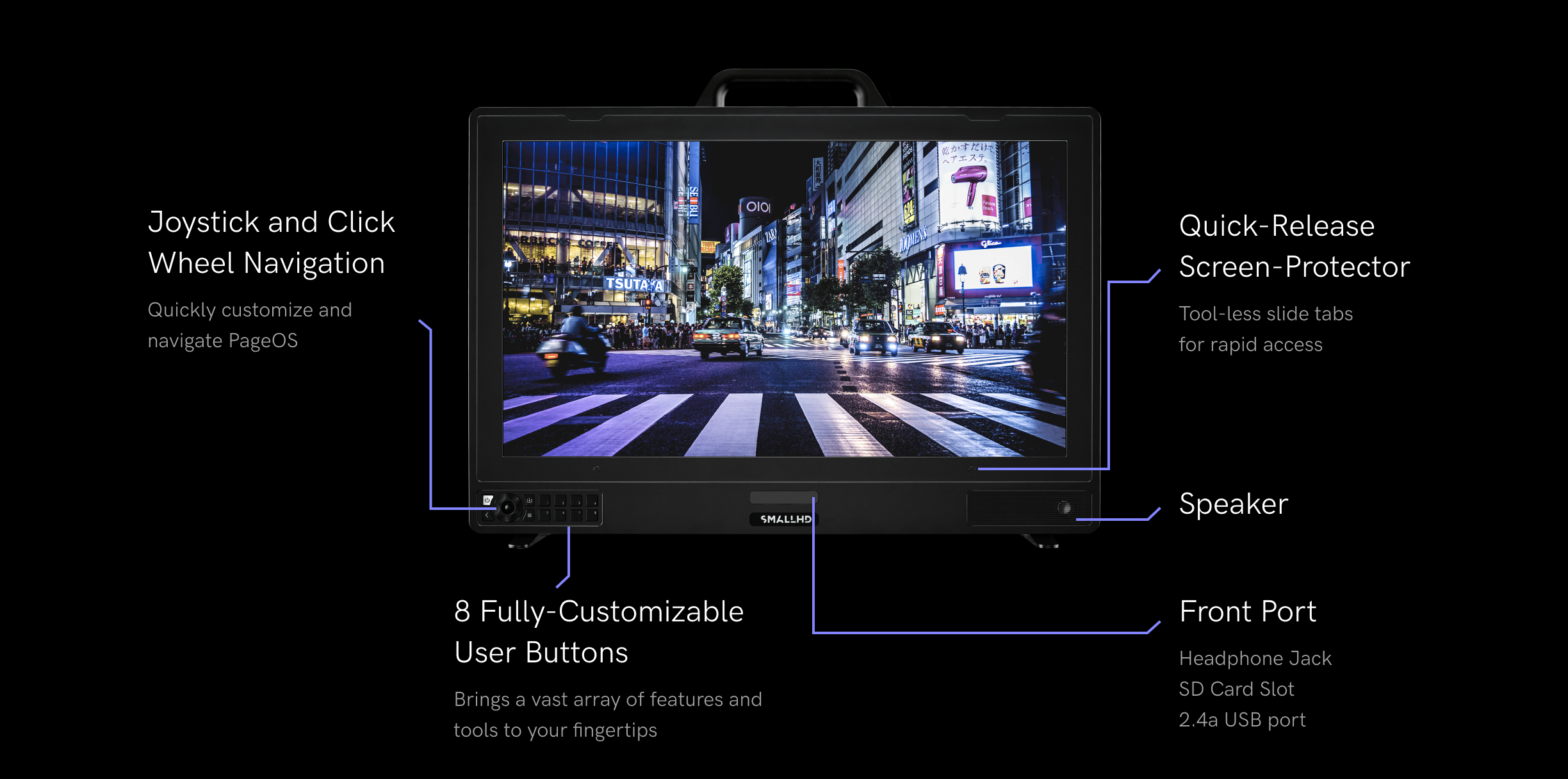

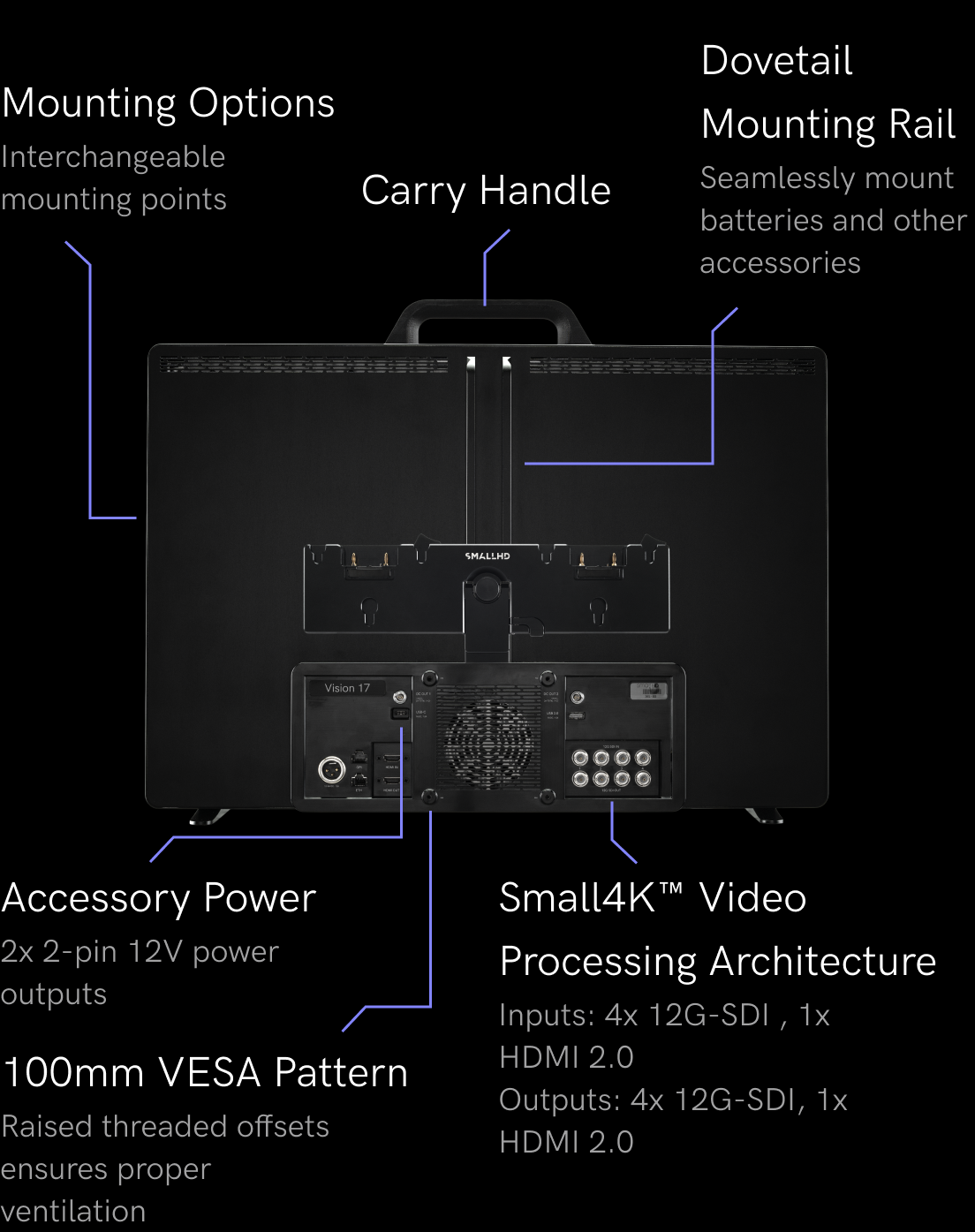

A Unibody Smart Chassis, a full complement of I/O options, integrated mounting points, and a field-tested reputation for lightweight durability.

A Unibody Smart Chassis, a full complement of I/O options, integrated mounting points, and a field-tested reputation for lightweight durability.

img img img

img img img

Mini-LED Local
Dimming (FALD)
Panel Technology

Mini-LED Local
Dimming (FALD)
Panel Technology

The Vision Series Monitors feature a mini-LED local dimming array, with over 2000 individual zones behind the panel. This high-density of zones allows for excellent handling of high-contrast areas across the screen. SmallHD’s FALD controls the light behind the LCD array by modulating each individual LED dynamically. This rapid-fire on/off is controlled by a proprietary algorithm designed by SmallHD, with the goal of achieving HDR contrast ratios.

The Vision Series Monitors feature a mini-LED local dimming array, with over 2000 individual zones behind the panel. This high-density of zones allows for excellent handling of high-contrast areas across the screen. SmallHD’s FALD controls the light behind the LCD array by modulating each individual LED dynamically. This rapid-fire on/off is controlled by a proprietary algorithm designed by SmallHD, with the goal of achieving HDR contrast ratios.

Shop Vision 4K Monitors Shop Vision 4K
Monitors

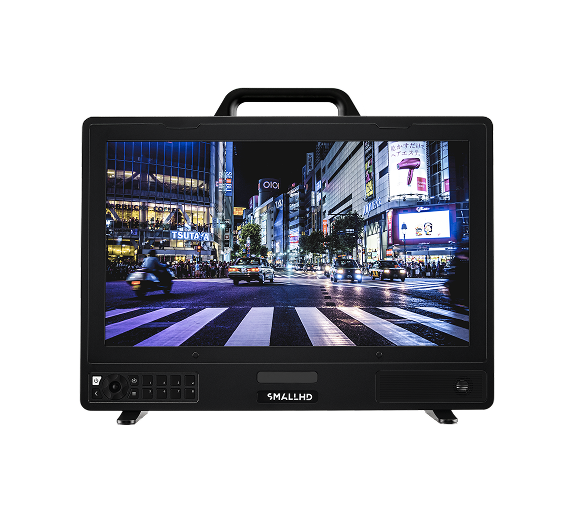

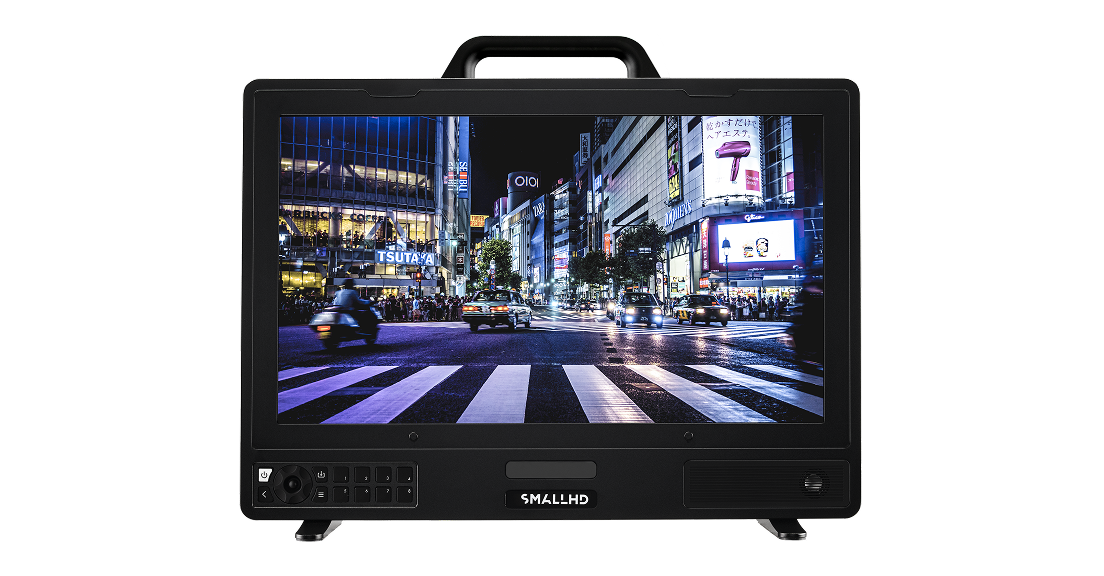

Vision 17

Starting at $9,999.00

Buy

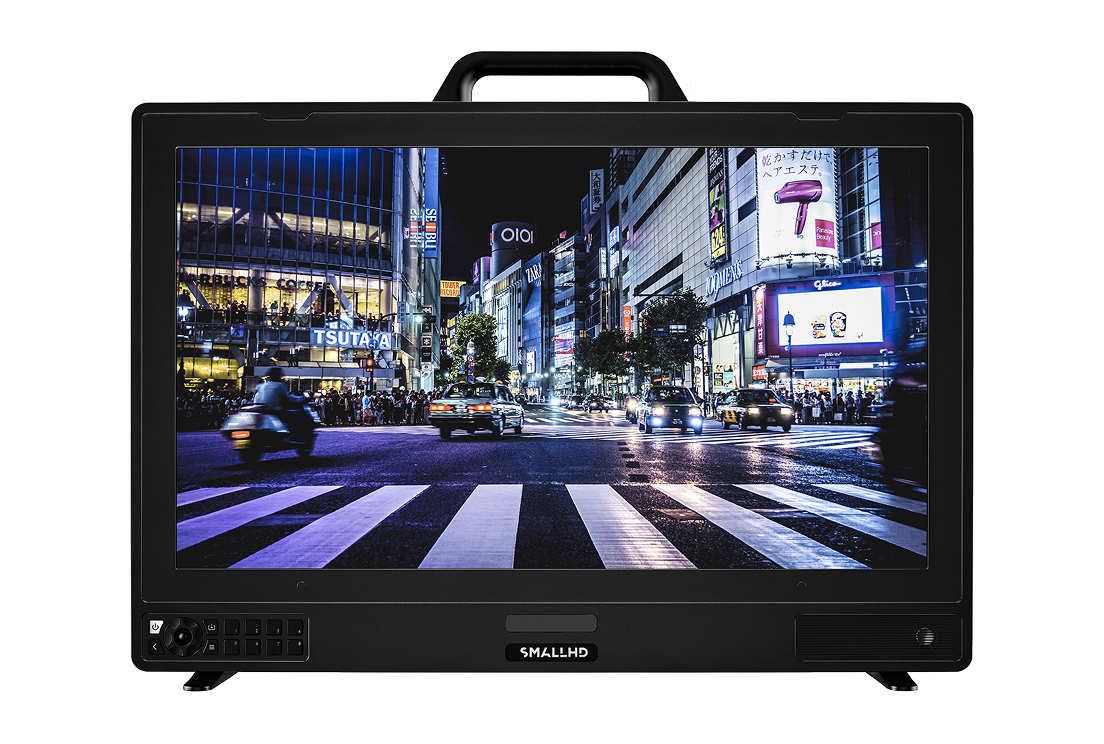

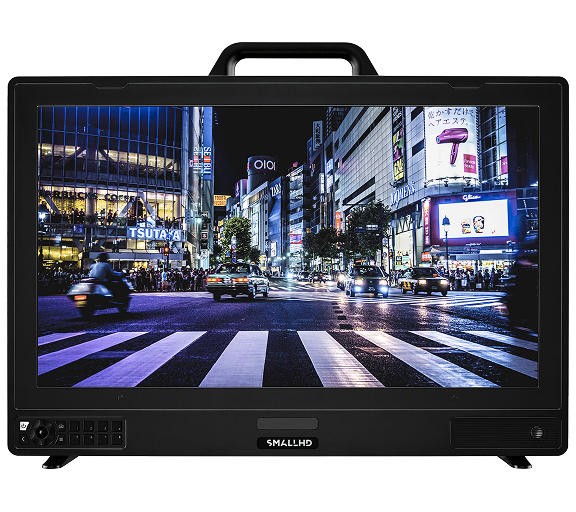

Vision 24

Starting at $14,999.00

Buy

Pay in full or choose a flexible payment plan with img.

Pay in full or choose a flexible payment
plan with img.

Learn More Learn More
SCREEN PROTECTORS +
SUNHOODS + CASES + More SCREEN PROTECTORS +
SUNHOODS + CASES + More

Explore
Accessories

Explore
Accessories

Configure your 4K Monitor to your workflow.

Configure your 4K Monitor to your workflow.

Shop Now
Sunhood Cheese Sticks Mounting Rail ACC Case Sunhood Cheese Sticks Mounting Rail

Talk to an Expert

Talk to an Expert

Talk to an Expert

Talk to an Expert

We’ll talk you through calibration and perceptual matching, Color Pipe
configuration for HDR and SDR, and
show you PageOS’ expansive capabilities.

We’ll talk you through calibration and perceptual matching, Color Pipe
configuration for HDR and SDR, and
show you PageOS’ expansive capabilities.

We’ll talk you through calibration and perceptual matching,
Color Pipe configuration for HDR and SDR, and show you
PageOS’ expansive capabilities.

We’ll talk you through calibration and perceptual matching,
Color Pipe configuration for HDR and SDR, and show you
PageOS’ expansive capabilities.

Contact Us
