Focus 504
Focus 504
Compact Design.
Professional Tools.
Compact Design.
Professional Tools.
Focus 504 packs the full PageOS toolset into
a lightweight
5-inch touchscreen monitor. It
has a durable aluminum
chassis, full SDI and
HDMI I/O, and physical function
buttons to
quickly access tools and settings.
Focus 504 packs the full PageOS toolset into
a lightweight
5-inch touchscreen monitor. It
has a durable aluminum
chassis, full SDI and
HDMI I/O, and physical function
buttons to
quickly access tools and settings.
Focus 504
Focus 504
Starting at$999.00
Focus 504 gives you a daylight-ready display reinforced
with an aluminum body in our smallest, slimmest
monitor yet. Professional-grade I/O includes 3G-SDI,
HDMI 2.0, USB-C, and integrated 2.4 GHz Wi-Fi
Focus 504 gives you a daylight-ready display reinforced
with an aluminum body in our smallest, slimmest
monitor yet. Professional-grade I/O includes 3G-SDI,
HDMI 2.0, USB-C, and integrated 2.4 GHz Wi-Fi
1000nits
1000nits
Max Brightness
Max Brightness
2.4GHz
2.4GHz
Internal Wi-Fi
Internal Wi-Fi
2-Pin &
Locking USB
2-Pin &
Locking USB
Input Power
Input Power
Camera Control
Sony, Canon, ARRI, RED*
1920x1080
Panel Resolution
3G-SDI &
HDMI
3G-SDI &
HDMI
Input / Output

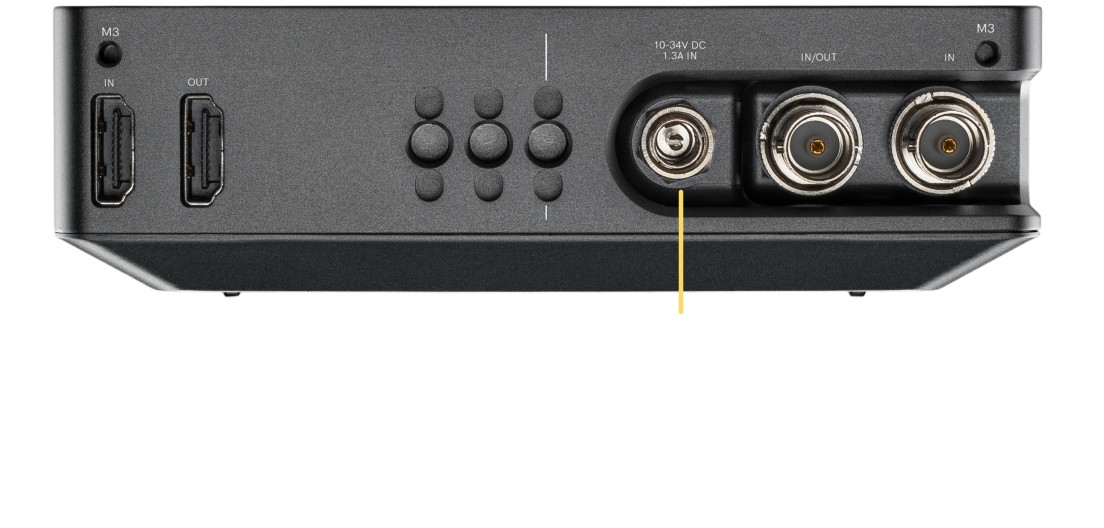

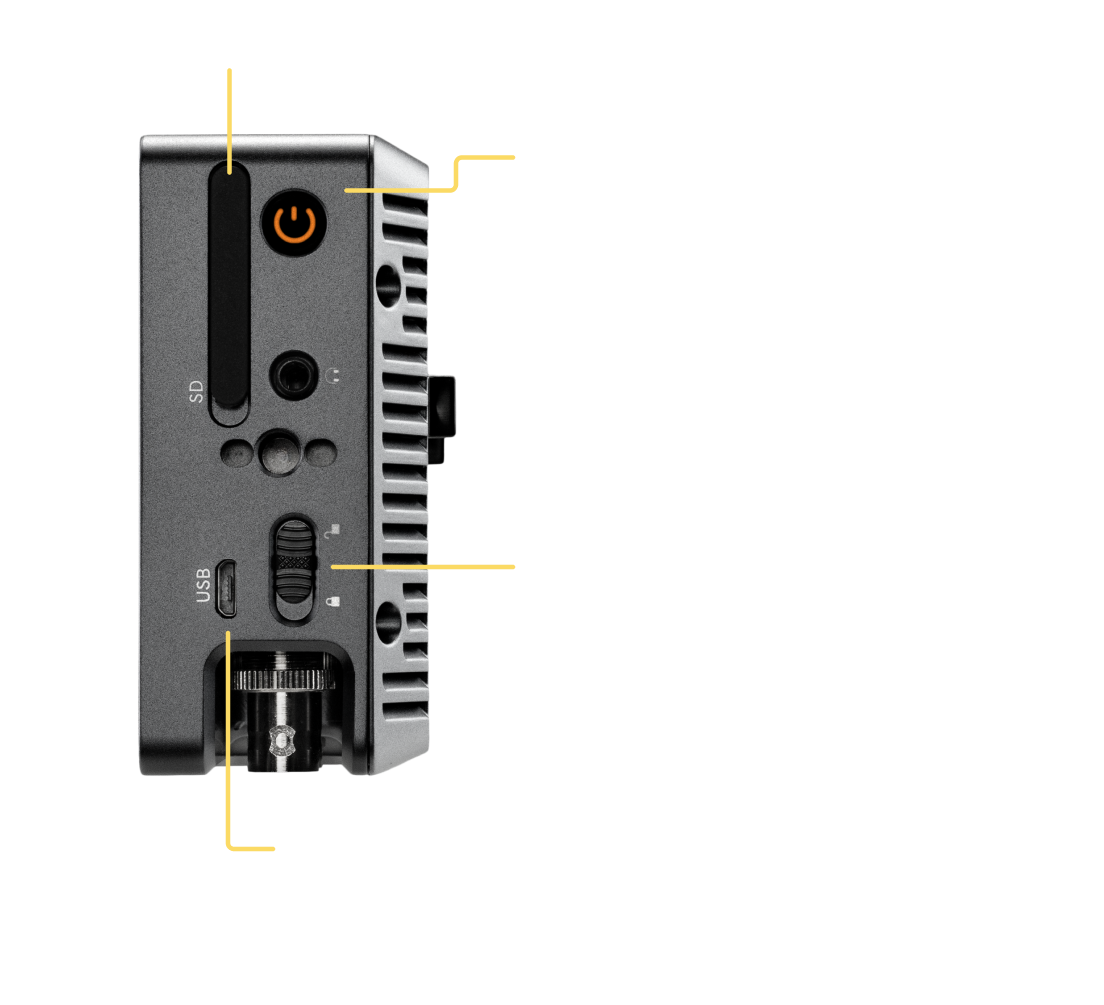

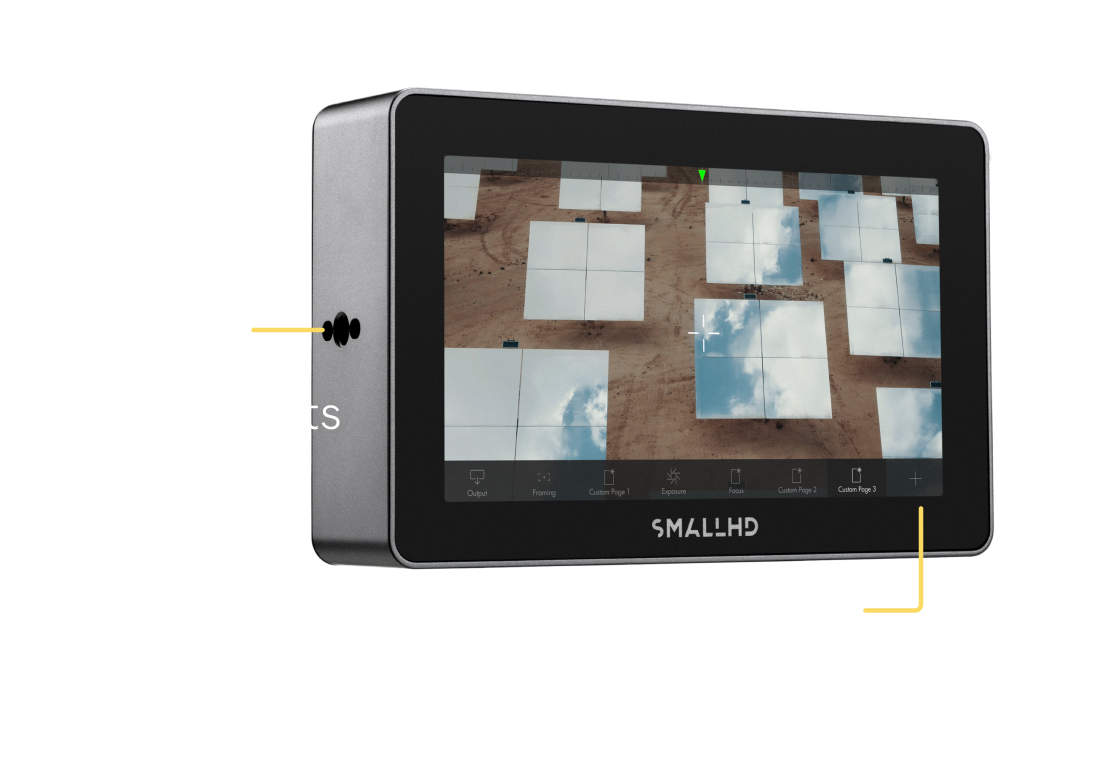

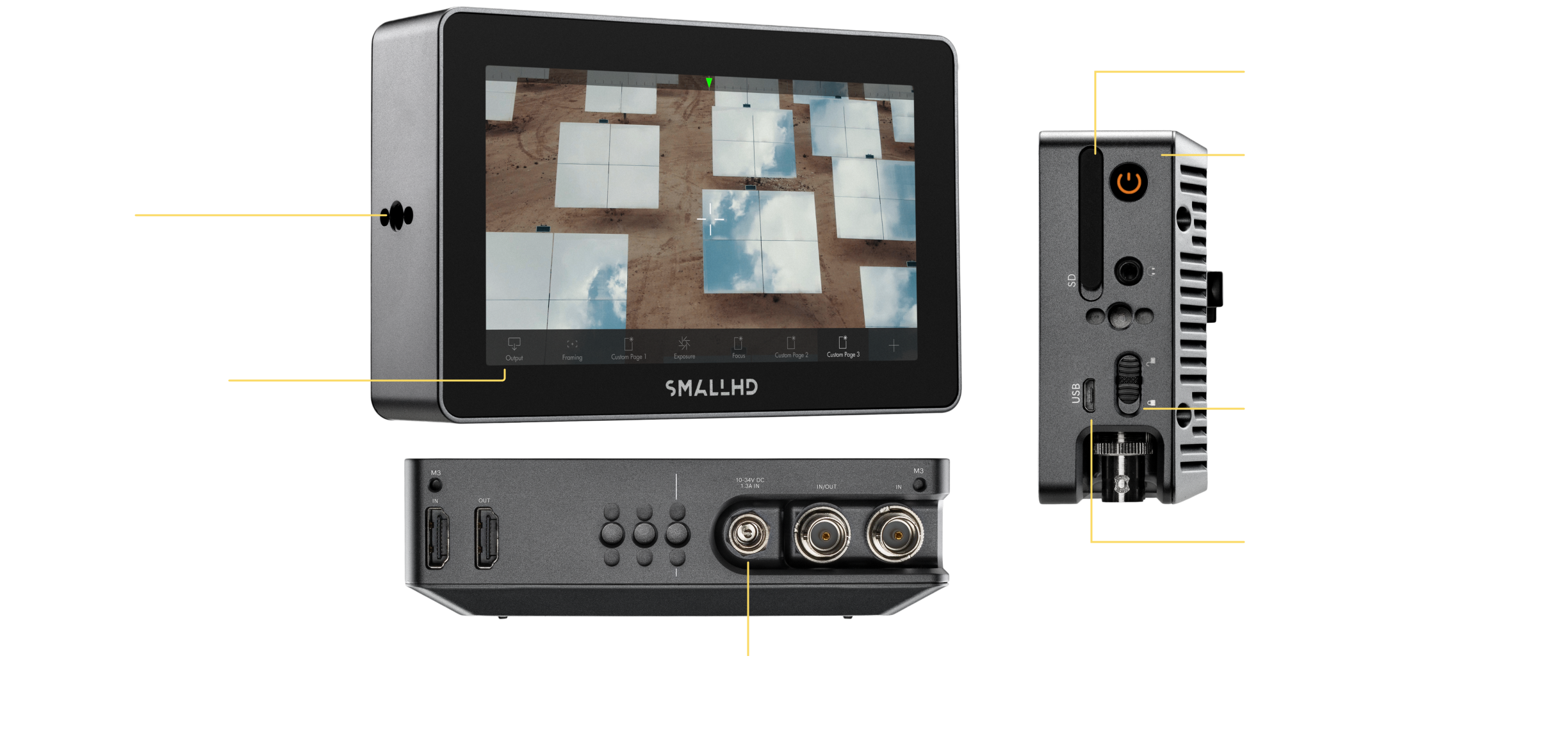

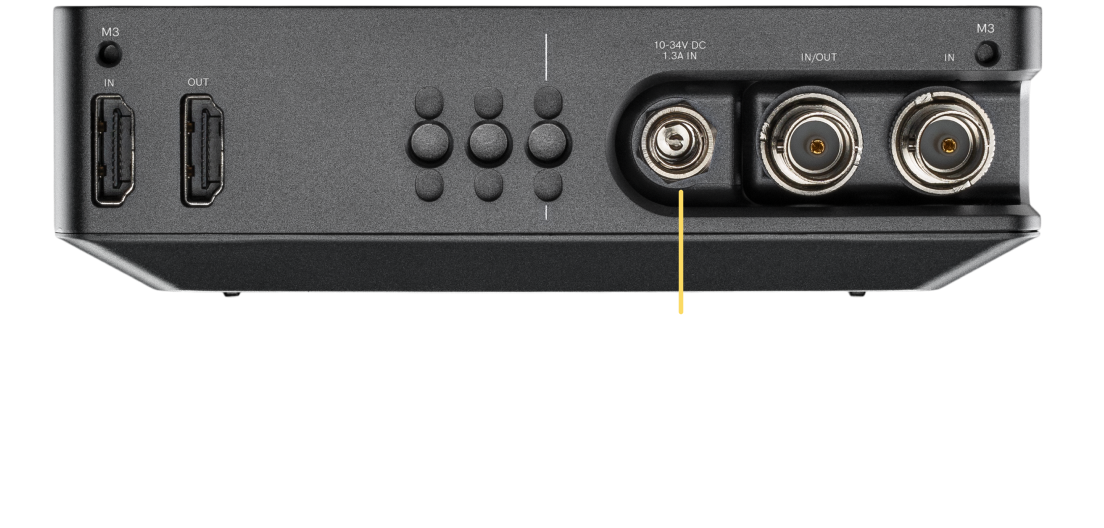

Hardware Overview
Hardware Overview
Powered by PageOS
Powered by PageOS
Every page is built from tools you choose. Make
a framing page with guides and
safe zones, a
focus page with focus assist and peaking, and an
exposure page
with false color and a waveform.
Share a tool across every page or keep it on
one,
then swipe between them as you work. Add-on
licenses bring camera
control into PageOS for
ARRI, Sony, RED®, and Canon.*
Every page is built from tools you choose. Make
a framing page with guides and
safe zones, a
focus page with focus assist and peaking, and an
exposure page
with false color and a waveform.
Share a tool across every page or keep it on
one,
then swipe between them as you work. Add-on
licenses bring camera
control into PageOS for
ARRI, Sony, RED®, and Canon.*
Custom Pages
Custom Pages
Pin essential tools, shortcuts, and metadata
to every page for quick viewing and
adjustments.
Pin essential tools, shortcuts, and metadata
to every page for quick viewing and
adjustments.
Vertical Mode
Vertical Mode
Purpose-built portrait interface for monitoring, framing, and operating when shooting vertical content.
Purpose-built portrait interface for monitoring, framing, and operating when shooting vertical content.
USB Thumb drive
USB Thumb drive
Plug a USB-C thumb drive into the monitor to update firmware, load LUTs, save screen grabs, and more.
Plug a USB-C thumb drive into the monitor to update firmware, load LUTs, save screen grabs, and more.
Focus 504
Focus 504
Built on Years
of Experience
Built on Years
of Experience
SmallHD has been designing monitors since 2009 from our headquarters
in Cary, North Carolina. Our hardware, software, and production teams
work side by side on everything from board design and the PageOS
interface to final assembly and testing. This ensures every monitor we
ship is built to deliver a reliable experience, shoot after shoot.
SmallHD has been designing monitors since 2009 from our headquarters
in Cary, North Carolina. Our hardware, software, and production teams
work side by side on everything from board design and the PageOS
interface to final assembly and testing. This ensures every monitor we
ship is built to deliver a reliable experience, shoot after shoot.
Designed, assembled,
and shipped from
North Carolina
Designed, assembled,
and shipped from
North Carolina
Shaped by feedback from
working industry
professionalspros
Shaped by feedback from
working industry
professionalspros
Trusted on productions
around the world
Trusted on productions
around the world
Compare SmallHD
5-inch Monitors
SDI
SDI
1x 3G-SDI In
1x 3G-SDI Out
1x 3G-SDI In
1x 3G-SDI Out
1x 3G-SDI In
1x 3G-SDI In/Out
Power, Video,
Communication Port
Power, Video,
Communication Port
HDMI
HDMI
1x HDMI 2.0 Input
1x HDMI 2.0 Output
1x HDMI 2.0 Input
1x HDMI 2.0 Output
1x HDMI 2.0 Input
1x HDMI 2.0 Output
Panel Resolution
Panel Resolution
1920x1080
1920x1080
1920x1080
Camera Control*
Camera Control*
ARRI, Sony, RED, and Canon
ARRI, Sony, RED, and Canon
ARRI, Sony, RED, and Canon
Control Interface
Control Interface
Rear Joystick
2x Function Buttons
Touchscreen
Side Joystick
Touchscreen
Front Joystick
3x Function Buttons
Touchscreen
Battery Support
Battery Support
1x L-Series
2x L-Series
Gold , V, or B-Mount
Micro Plates*
Control Ports
Control Ports
USB-C
5-Pin USB
Ethernet
5-Pin USB
Power Input
Power Input
2-pin Locking Connector
Locking USB
2-pin Locking Connector
2-pin Locking Connector
Weight
Weight
10.8oz / 306.25g
14.7oz / 417g
17.8oz / 503g
*Camera control functionality coming soon. Licenses are sold
separately.
Shop Focus 504
Shop Focus 504
Focus 504
Focus 504
Slim, lightweight 5-inch monitor with PageOS
Slim, lightweight 5-inch monitor with PageOS
SKU:16-0520
SKU:16-0520
- 1000nits Brightness
- 3G-SDI / HDMI Input & Output
- 1920x1080
